Connect Tablet/PC (LAN)

Connect the printer and a tablet or PC, and set a static IP address to the printer.

Once a static IP address is assigned, the IP address will not be changed due to the DHCP server, so the specified connection destination device can be used continuously once set.

It is convenient to use the dedicated app when setting a connection with a smartphone or tablet.
For details, refer to Use App.

If you do not use a dedicated app, follow the procedure below to perform setup.

Prepare for Device Connection

Check Printer IP Address

Open Printer's Setting Screen (Web Configuration)

Printer's Static IP Address Setting

When using Multi-interface

There are some restrictions related to connecting multiple devices to a single printer. Make appropriate connections to suit your environment.

Precautions for Using Multi-interface

When using the printer in an environment without the DHCP server

You can specify the static IP address in an environment without a DHCP server by using the dedicated app. For details, refer to Use App.

Prepare for device connection

The connection method varies depending on the operating system of the device you are using.

Prepare to connect from an iOS device

Prepare to connect from an Android device

Prepare to connect from a Windows device

Prepare to connect from an iOS device

To configure the setting using an iOS device (iPad/iPhone), connect the printer and iOS device to the same network (same segment).

Execute the following steps after connecting the printer to the network and turning it on.

Connect LAN Cable

Turn On Power

1. Prepare an iOS device

Open the setting screen of the iOS device and turn Wi-Fi on.

Go to next step: Check Printer IP Address

Prepare to connect from an Android device

To configure the setting using an Android device, connect the printer and Android device to the same network (same segment).

Execute the following steps after connecting the printer to the network and turning it on.

Connect LAN Cable

Turn On Power

1. Prepare an Android device

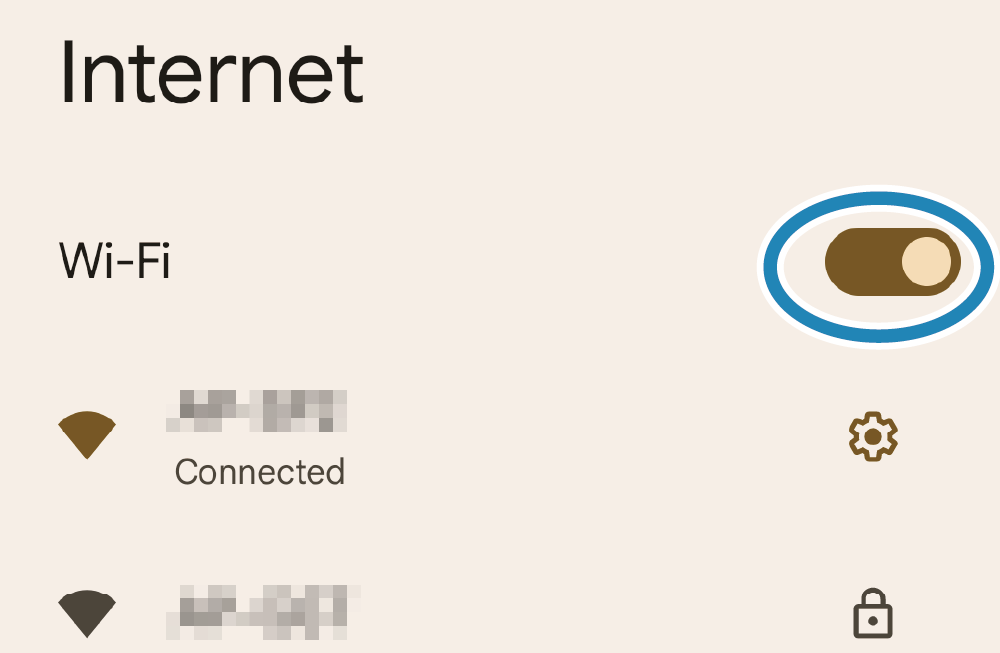

Open [Settings] - [Network & Internet] - [Internet] screen on the Android device, and turn Wi-Fi on.

Go to next step: Check Printer IP Address

Prepare to connect from a Windows device

To configure settings, connect mC-Label3 and the Windows PC or Windows tablet to the same network (same segment).

Execute the steps below after connecting mC-Label3 to the network and turning the printer on.

Connect LAN Cable

Turn On Power

1. Prepare a Windows device

Click the network icon on the taskbar, and turn Wi-Fi on.

Go to next step: Check Printer IP Address

Check printer IP address

Because the IP address is specified from the host device when connecting to the printer, check the IP address that is currently assigned to the printer.

1. Check the current IP address

Perform Self-Printing of the printer, and check the IP address displayed in "IP Address" of **Current IP Parameters Status**.

Proceed to the next step: Open Printer's Setting Screen (Web Configuration)

Return to link source 　　　　

Open printer's setting screen (Web Configuration)

Use the checked IP address to connect to the printer. The printer setup screen (Web Configuration) will open.

1. Open the setting screen (Web Configuration) of the printer via the Web browser

Enter the IP address checked on the previous section (example: 172.16.212.143) into the address input field of Safari or another Web browser. The printer is connected and the printer settings screen (Web Configuration) opens.

If Web Configuration is not displayed correctly

If “https://[Printer IP address]” was specified when the printer IP address was input into the web browser, Web Configuration may not be displayed correctly.

When opening Web Configuration, use “http:// [Printer IP address]”.

2. Log in to Web Configuration

Open [Login] from the menu displayed on the left side of the settings screen or from the menu button displayed on the upper-left side.

Note

The default login name and password are as follows:

Login name	root
Password	public

If you want to change the printer settings, the default password has to be changed.

When logging in using the default password, a screen for changing the password opens. After changing the password, proceed to the next step.

Proceed to the next step: Printer's Static IP Address Setting

Return to link source 　　　　

Printer's static IP address setting

Specify the static IP address of the printer from WebConfiguration you logged in to.

1. Specify static IP address

From the menu or the menu button in the upper left, open "IP Parameters" , select "Static ", enter IP Address, Subnet Mask , and tap "Submit" .

Note

Ask your network administrator about the static IP address and subnet mask to use in the settings.

A screen where you can check and save the entered details will appear.

2. Save the settings to the printer

From the menu or menu button in the upper left, open "Save" , select "Save""Configuration Printing""Restart device", and tap "Execute".
The settings are saved to the printer and printed out.
