Use Star SteadyLAN


The contents to be displayed and procedures vary depending on the operating system of the host device (PC, smartphone, or tablet) you want to use.
Select the operating system for display.

Android Windows

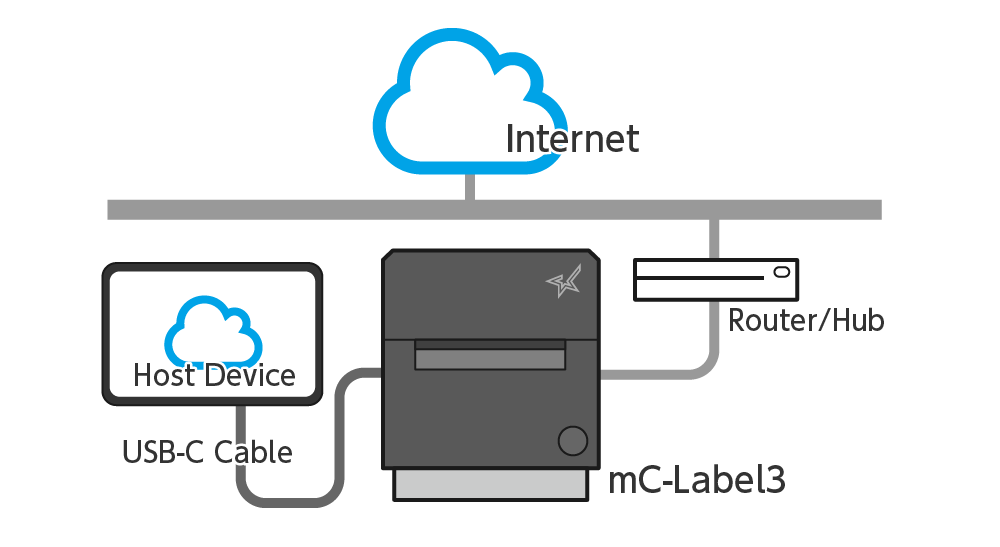

SteadyLAN function

By using a USB cable to connect a host device such as a PC/tablet tablet/smartphone that supports USB PD (USB Power Delivery) to an mC-Label3 that is connected to a network, it is possible to use the Internet from the host device without using Wi-Fi communications.
At the same time, the device can communicate with the printer via USB communication or LAN communication, and power is supplied from the printer.

This not only simplifies the wiring, but because all parts of the solution are wired, more stable network connections are possible.


This function has been tested with iOS 10.1.1 and later.

This function is supported by Android 9.0 or later.

This function is supported by Windows 10 or later.
Even when using a host device that does not support USB PD, network connection is possible via the USB cable when the USB connection type supports communication. (However power supply is not performed.)

SteadyLAN is “Disabled” in the factory default setting of the printer. Follow the procedure below and configure the settings before use.

There are some restrictions related to simultaneous connection (communication) of multiple devices to a single printer. Make appropriate connections to suit your environment.
Precautions for Using Multi-interface

Caution

  • The SteadyLAN function cannot be used with the TetherLAN.
  • When the SteadyLAN is “Enabled” and the host device is connected to a USB-C device on the mC-Label3 that is connected by cable to a network, host device network communication takes priority over the wireless LAN, and the device switches to a wired LAN connection via USB-C.

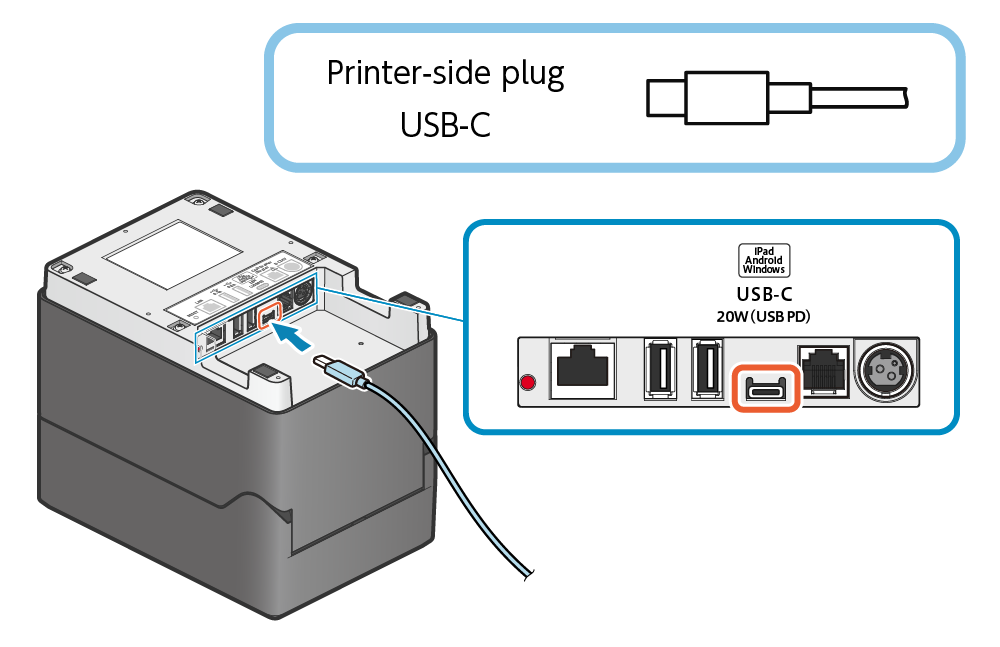

1. Connect the USB cable to the printer

  • Connect the USB cable (C-C) provided with the printer or another USB cable (C-A) to the printer USB-C port.
          For details, refer to Connect USB Cable and follow the procedure and precautions in that section.

2. Connect the printer to the network

  • Connect the LAN cable to the printer LAN connector, and connect the plug on the other end to the hub, router, or other network device.
For details, refer to Connect LAN Cable and follow the procedure and precautions in that section.
 Top

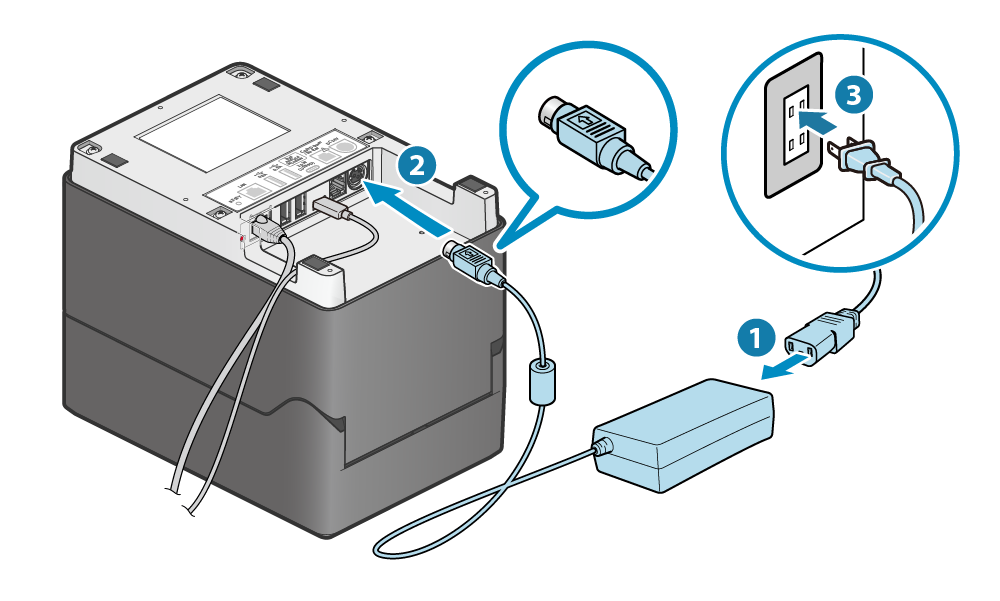

3. Connect the AC adapter to the printer

  • Connect the power cable to the AC adapter and connect the AC adapter plug to the printer . Then insert the power cable plug into the outlet .
For details, refer to Connect AC Adapter and follow the procedure and precautions in that section.

4. Turn ON the printer power

  • Press the Power button on the side of the main unit. When the Power LED lights up red, release the Power button.
    *Release the Power button when the Power LED flashes blue other than when starting for the first time after connecting the AC adapter.

Note

When the printer is returned to the installation posture, check that the paper is correctly set to the paper guide shaft. Paper Setup

 Top

5. Enable SteadyLAN

  • Use the special app to configure the printer network and SteadyLAN settings.
    Download and install Star Quick Setup Utility. Use App
  • Start Star Quick Setup Utility and select to the connected printer.

  • The connected printer is displayed.
    Open [Printer Settings] - [Network Settings].

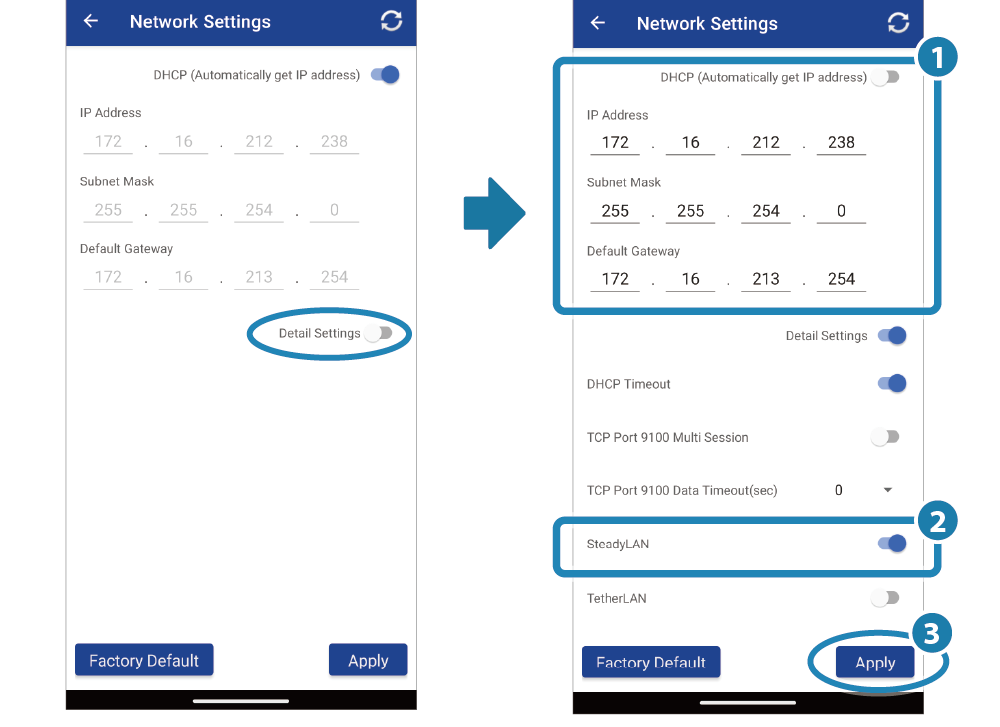

  • Display the Detail Settings, set up the network (static IP address of the printer) and set SteadyLAN to “Enabled”, and tap [Apply].

  • Use the special app to configure the printer network and SteadyLAN settings.
    Download and install Star Quick Setup Utility. Use App

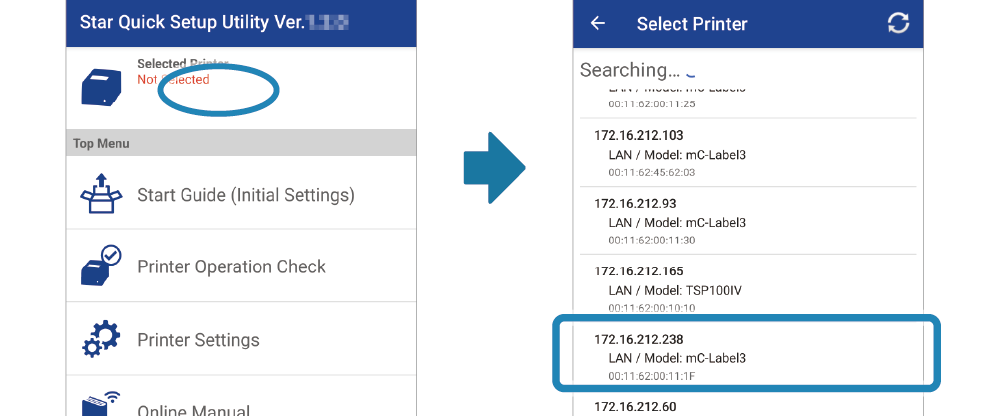

  • Start Star Quick Setup Utility and select to the connected printer.

  • The connected printer is displayed.

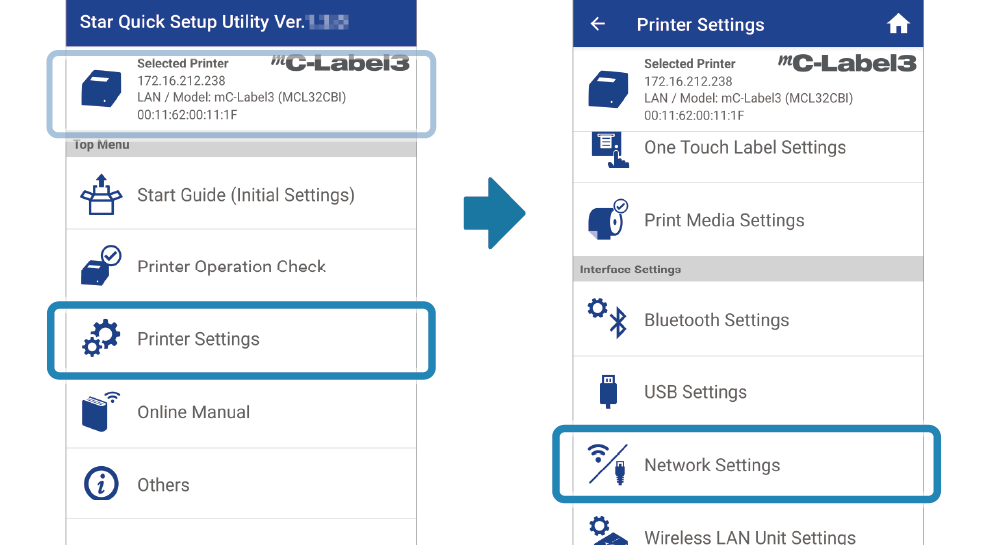

    Open [Printer Settings] - [Network Settings].

  • Display the Detail Settings, set up the network (static IP address of the printer) and set SteadyLAN to “Enabled”, and tap [Apply].

  • Use the special app to configure the printer network and SteadyLAN settings.
    Download and install Star Windows Software. Use App

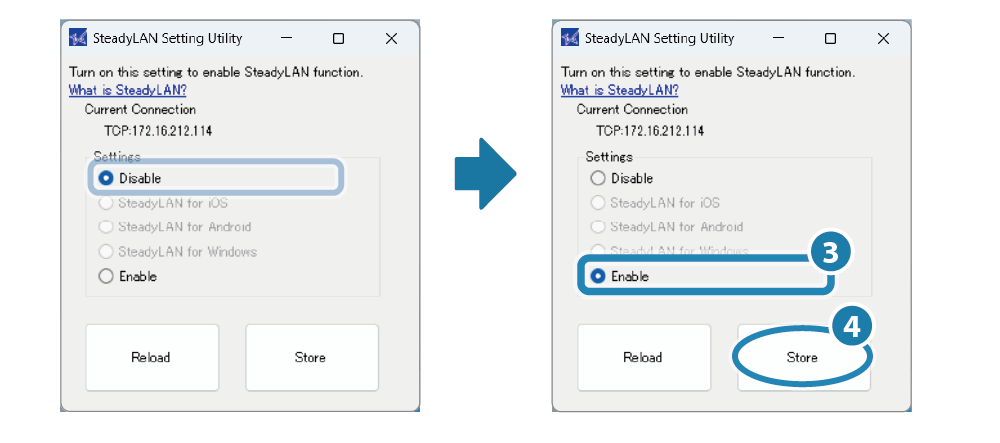

  • From the Start menu, start [Star Windows Software]-[SteadyLAN Setting Utility].

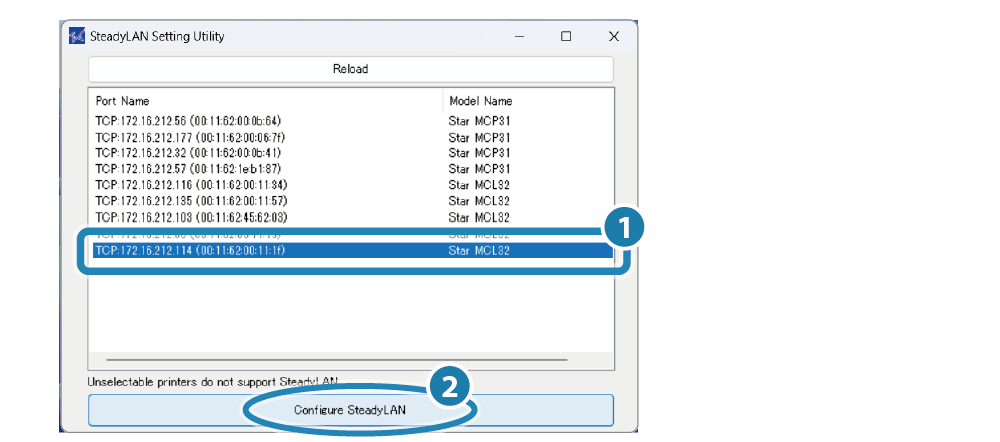

  • Select the connected printer and tap [Configure SteadyLAN] .

  • Select Enabled and tap [Store] .

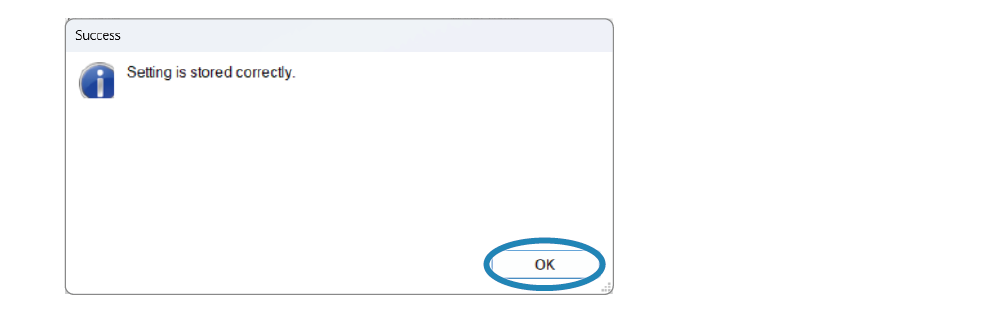

  • When the “Success” dialog box appears, SteadyLAN setting is completed.
    Tap [OK] to exit SteadyLAN Setting Utility.

Note

When TetherLAN is enabled, it will be disabled when SteadyLAN is enabled.

 Top

6. Connect the host device to the printer

  • Take the plug on the other end of the USB cable that was connected to the printer in Step 2, and connect it to the host device.

Note

When using in an environment where a DHCP server is not installed, configure the network settings from [Settings] - [Ethernet] on the iOS device.


Reference information

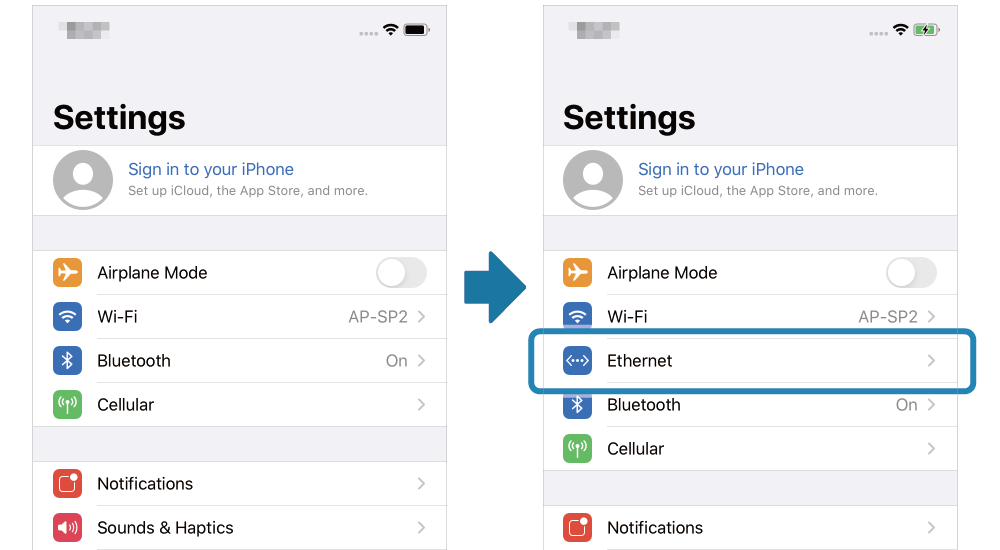

When the iOS device is connected to the printer, “Ethernet” is displayed in the iOS device settings.

With many models, when host device communication is changed from wireless LAN to wired LAN, the Wi-Fi icon changes to the Ethernet icon.

7. Turn OFF the host Device Wi-Fi

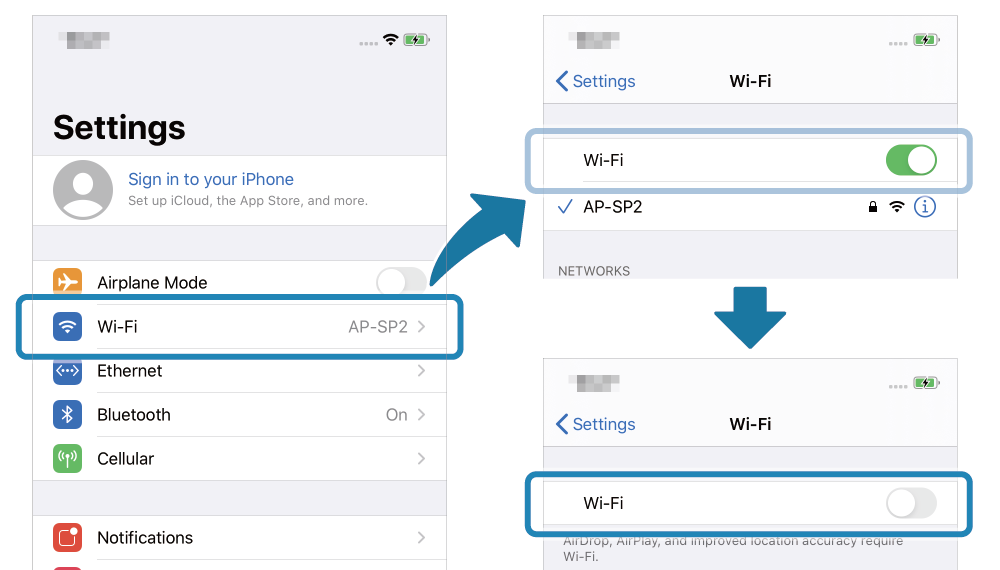

  • Set Wi-Fi to “OFF” from [Settings] - [Wi-Fi] on the iOS device.

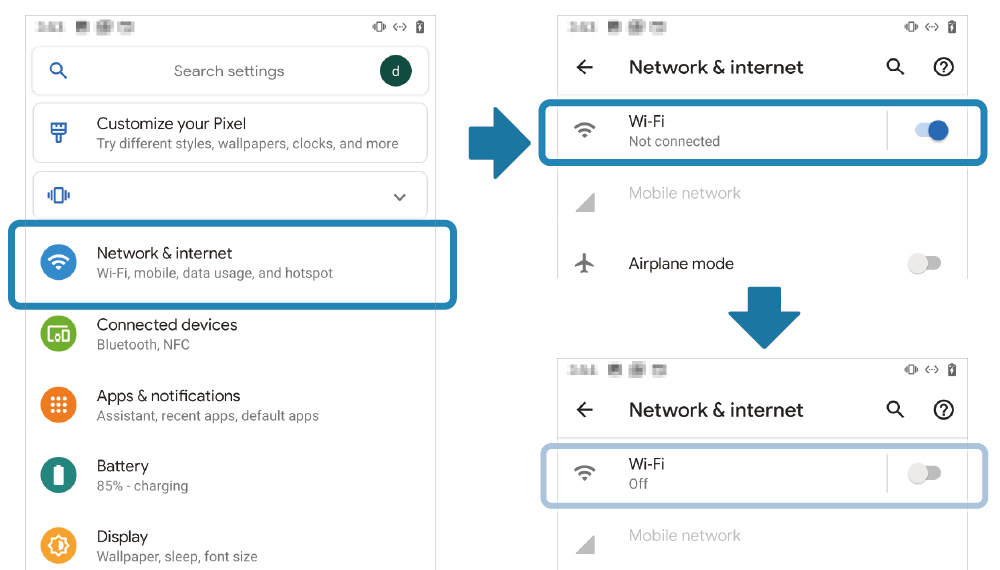

  • Open [Settings] - [Network & Internet], and set Wi-Fi to “OFF”.
  • Open [Settings] - [Network & Internet], and set Wi-Fi to “OFF”.

Note

The IP address and MAC address used differ between Wi-Fi and wired LAN (Ethernet). Configure the wired LAN network settings if necessary.
