Connect Power Cable

Connect the power cable that comes with mPOP.
Confirm the information in Safety Information - Power before connecting.

1. Turn power off

  • Turn off the power of mPOP.

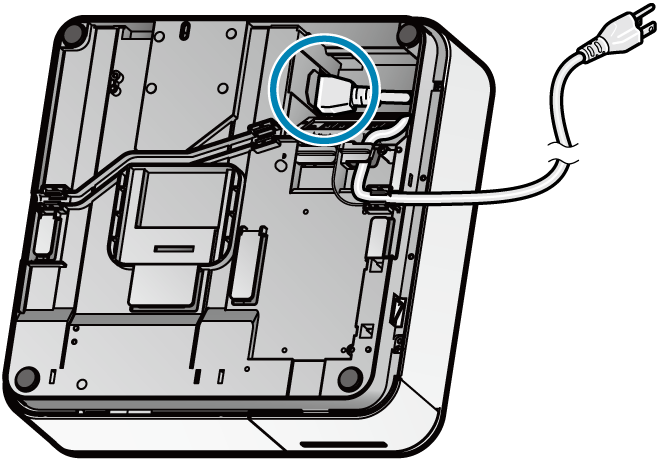

2. Connect power cable

  • Take note of the direction of the power socket, and connect the power cable.

3. Wire power cable

  • There are 2 cable outlets to the right and left, and it can be wired according to where mPOP is placed.
  • Wire it so it goes underneath or between the power cable hook and pull it out through the outlet.
Wiring example 1
Wiring example 2

Note

  • Make sure the power cable is properly inserted in the cable hook so that the mPOP does not tilt when it is set up.

    • 4. Insert power cable plug into electrical outlet.
