  • Turn On Power

    Confirm that the power cable is connected properly before turning on the power.

    Connect Power Cable

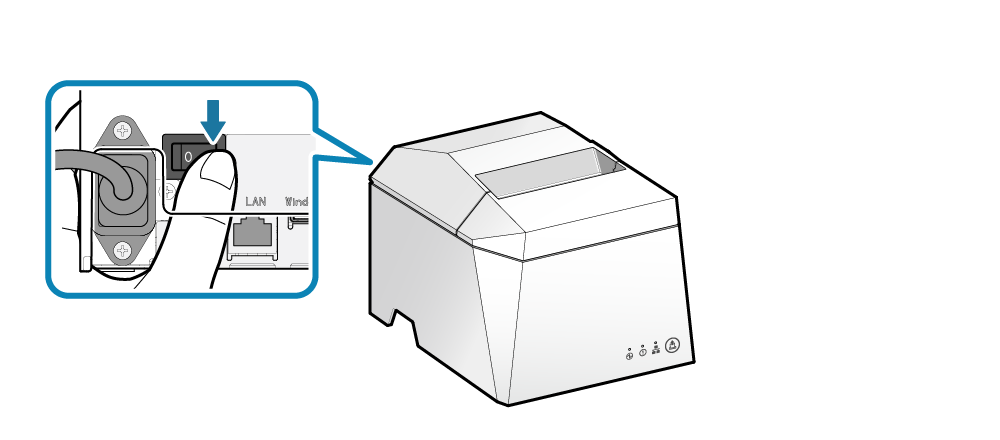

    1. Turn the power on

    • Press the power switch on the back of the main unit.

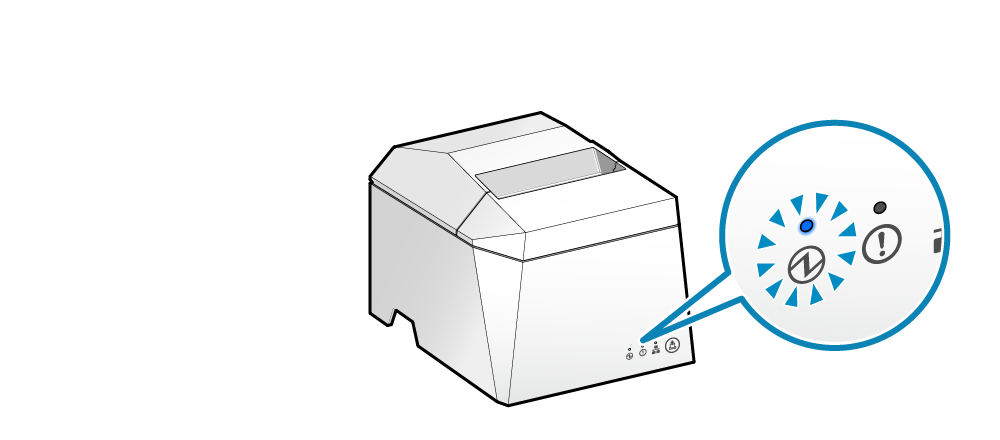

    2. Confirm LED lamp

    • When the power is turned on and it can be used normally, the Power LED turns on blue.
     Top

    Turn Off Power

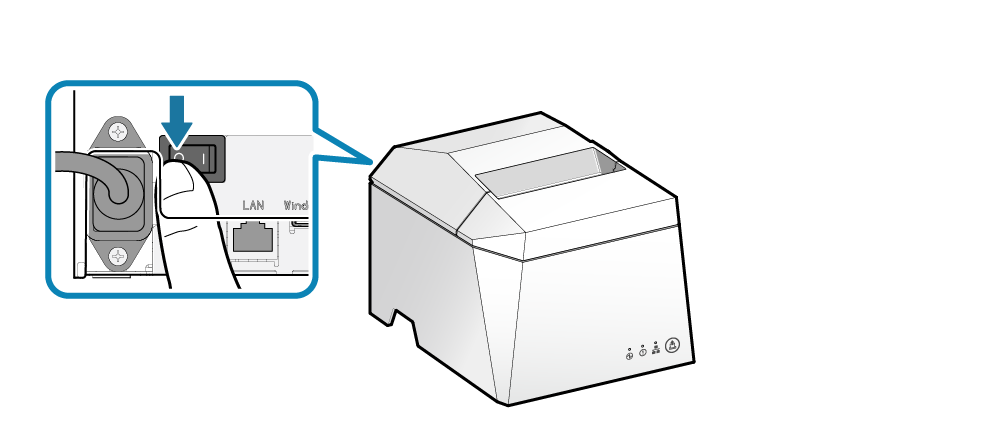

    1. Turn the power off

    • Press the power switch on the back of the main unit.

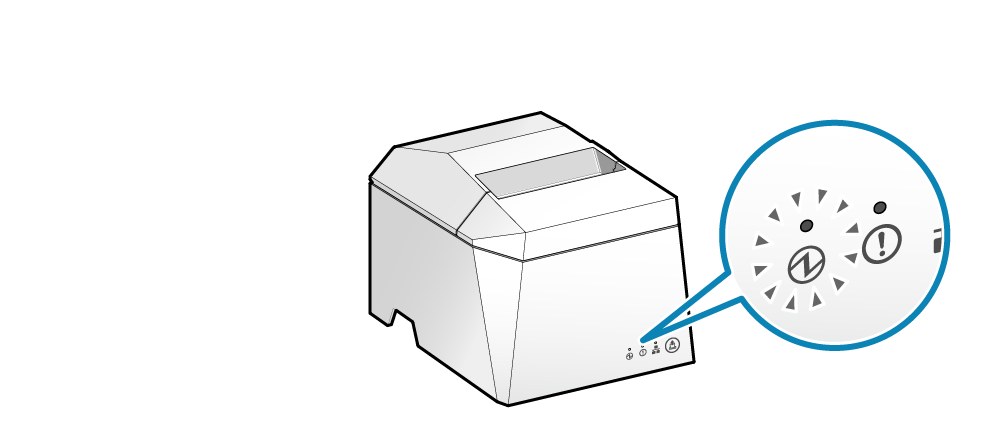

    2. Confirm LED lamp

    • The blue Power LED turns off when the power is turned off.
    • Confirm that the LED lamp has turned off before turning the power on again.
