Paper Setup

Use paper that meets the specifications of the printer. Paper Roll Specifications

When using 58mm wide rolls, mount the paper roll guide to the printer. Paper Roll Guide

1. Turn the power on

  • Set paper with the power turned on to automatically feed and cue the paper.
The power switch is on the back panel.

2. Open the printer cover

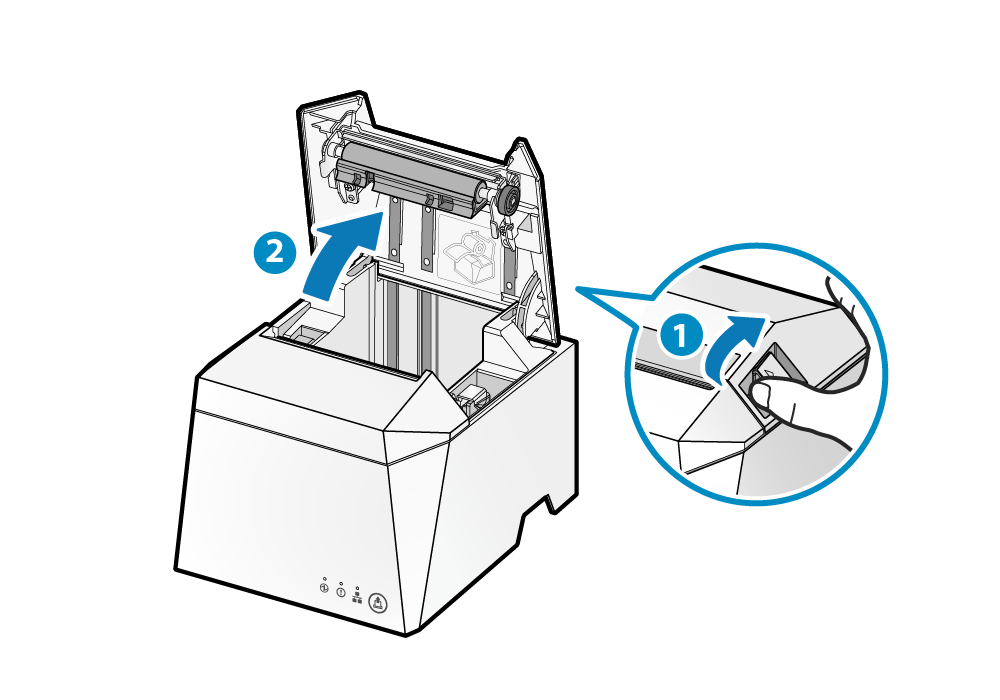

  • Push the opening lever to open the printer cover .

Note

  • When replacing paper, remove the paper core remaining in the paper roll holder.

    • 3. Set paper

    • Set the paper roll in the direction shown in the illustration .
    Set the paper roll so that the paper is pulled out from the bottom.

    Note

  • To prevent a paper jam, carefully wind the paper tightly from the paper roll before setting it in the printer.
    • When using vertically

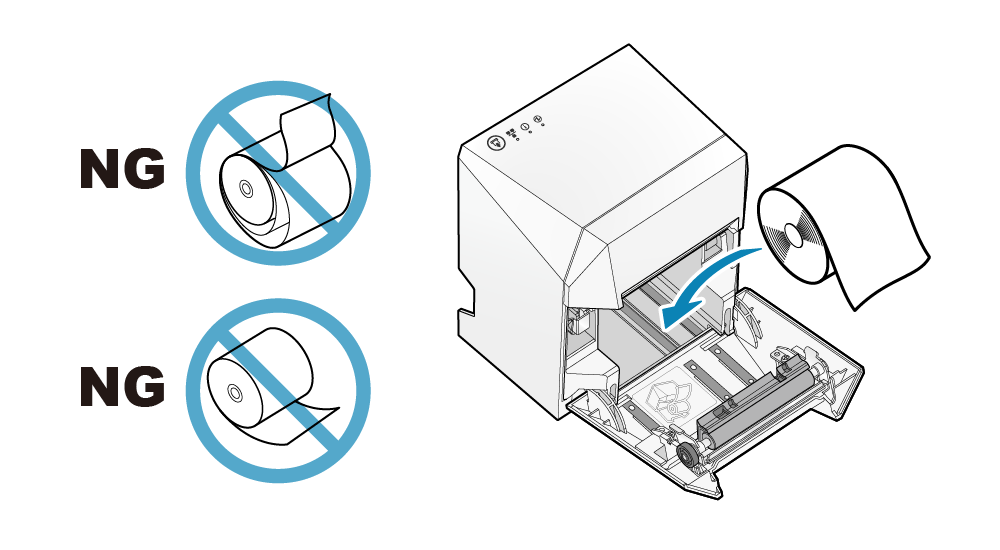

    • If the unit is set up vertically using the provided rubber feet or the wall-mounting holes, set the paper roll as shown in the following illustration.
    Set the paper roll so that the paper is pulled out from the upper side.

    4. Close the printer cover

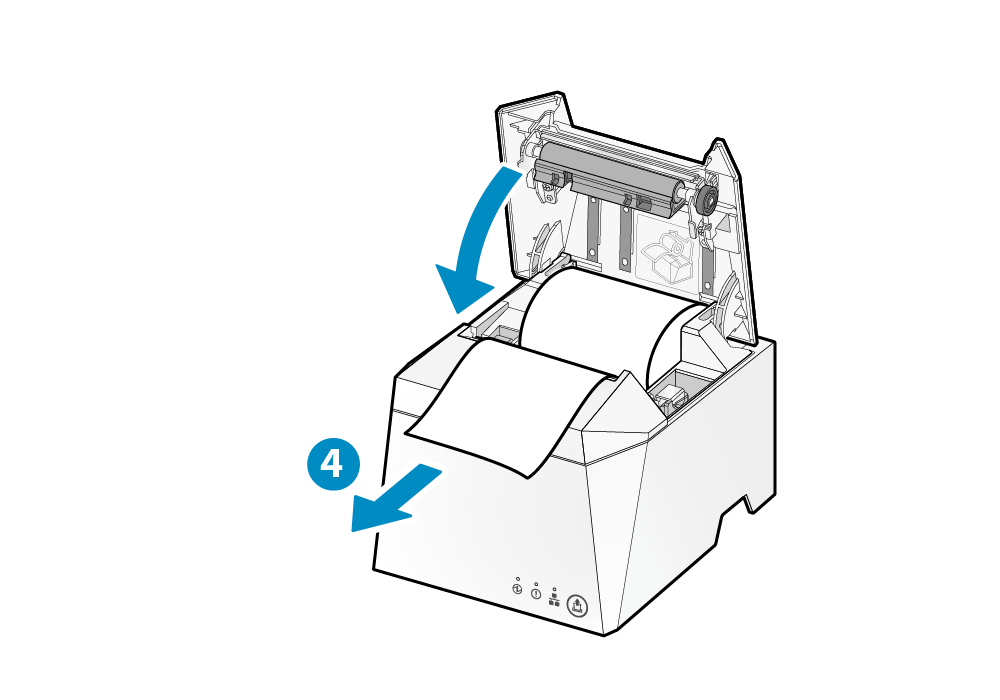

    • Pull the end of the paper straight out, sandwich the paper and close the printer cover .
      The setting is completed when the paper is cut automatically.

    • Push both sides as shown in the diagram and close the printer cover .

    Note

  • Remove the cut paper that was cut automatically.
    •  Top

    Paper Roll Specifications

    Use paper roll that complies to the following specifications.

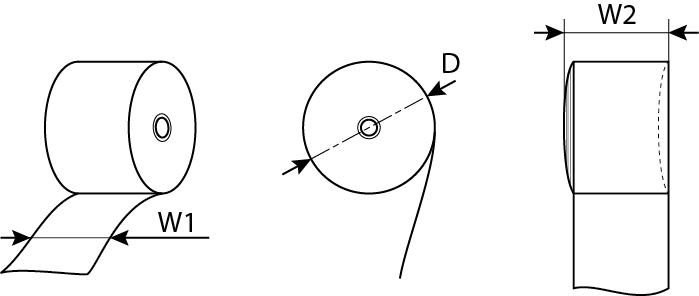

    Paper width (W1)79.5±0.5 (mm)/
    When using attached paper roll guide: 57.5±0.5 (mm)
    Maximum roll diameter (D)φ83 (mm)
    Curling dimension (W2) 80.0+0.5, -1 (mm)/58.0+0.5, -1 (mm)
    Paper thickness49 to 85 (μm)
    AxialInner diameter: φ12±1
    Outer diameter: φ16±1 (mm)
    Color surfaceRoll exterior
    Termination processDo not glue the paper roll and axial wrapper.

    For recommended paper rolls, refer to List of recommended paper rolls.
