Connect AC Adapter

Connect the included or optional AC adapter.
Confirm the information in Safety Information - Power before connecting.

Before and after connecting the cable to the rear panel, remove and mount the rear cover respectively.
Remove/Mount Rear Cover

Caution

Before connecting or disconnecting the AC adapter, be sure to turn off the printer and unplug the power cable.

1. Connect AC adapter

  • Securely plug the power cable (for the AC adapter) fully into the AC adapter inlet .
  • Plug the AC adapter in the correct vertical orientation into the power connector of the printer .

2. Connect the cable and mount the rear cover

  • Cable outlets are provided in 3 locations (right, left, and back), and cables can be routed to suit the location where the device is placed.
  • Mount the rear cover, referring to Mount rear cover

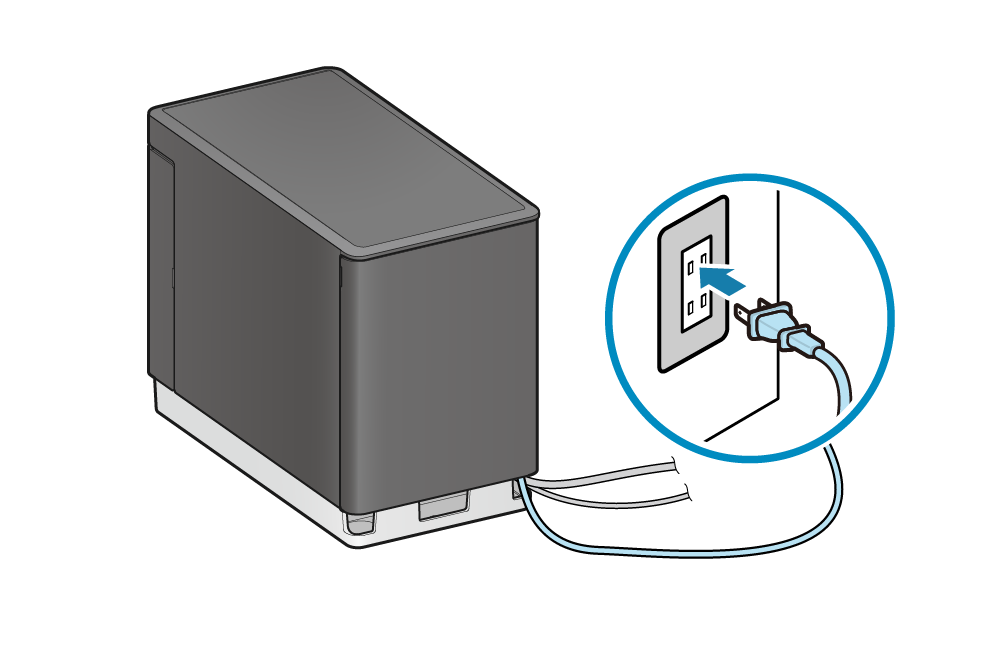

3. Insert the power cable plug into an electrical outlet
