Wireless LAN Troubleshooting

The special app can be used to identify troubles occurring during operation and support the subsequent actions.
<Wireless model only> Check Model

Download Special App (iOS, Android)

To download Star Quick Setup Utility, access the following URL from your iOS/Android tablet or smartphone and download it.

Download site

Identify Problem and Confirm Troubleshooting

The following steps must be performed after the power of the printer has been turned on.Turn On Power

Note

Use the following function on the device side for connections using the special app. Check the function beforehand.

  • Turn on the Bluetooth settings of the device you will use.
  • Turn on the positional information service settings of the device you will use.

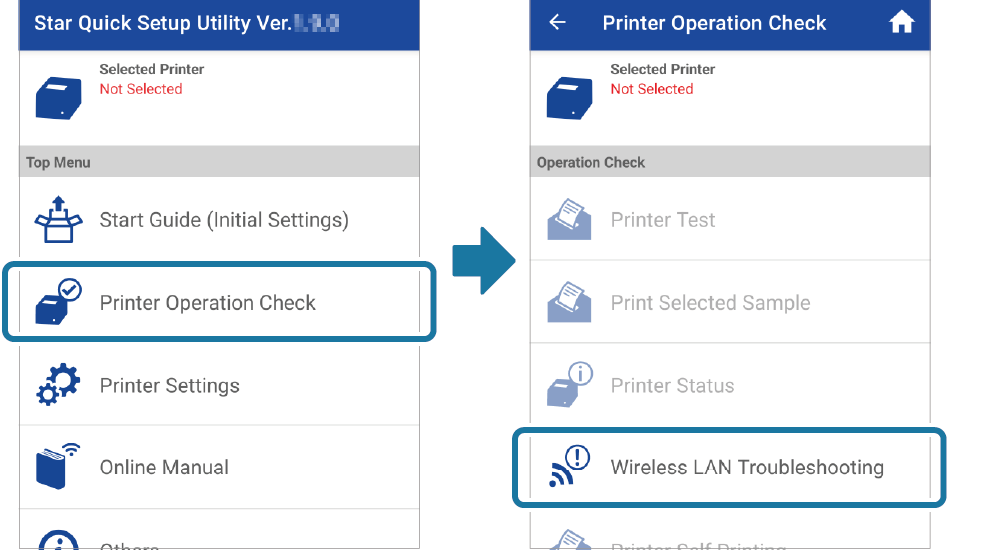

    • Start Star Quick Setup Utility and open [Printer Operation Check] - [Wireless LAN Troubleshooting].

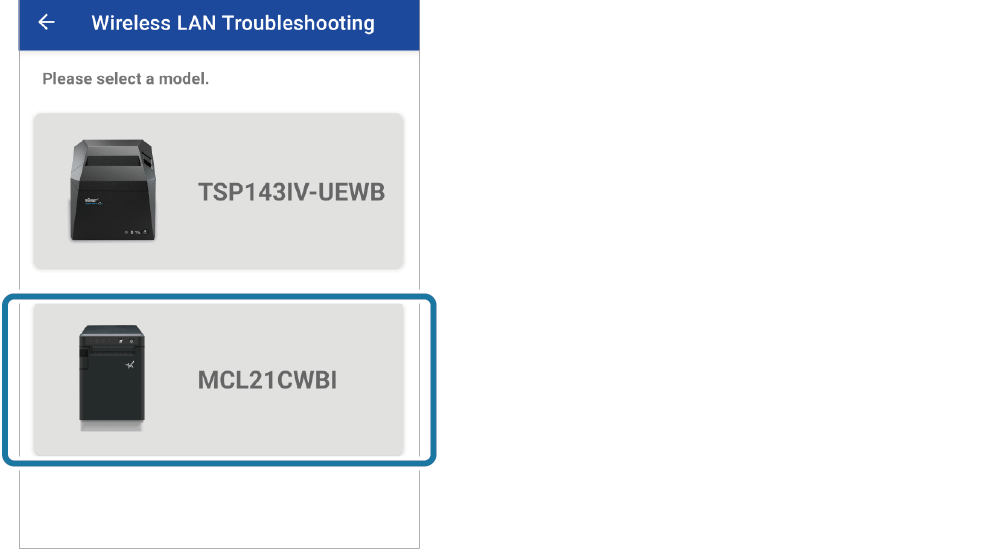

    • Select [MCL2CWBI] from model selection.

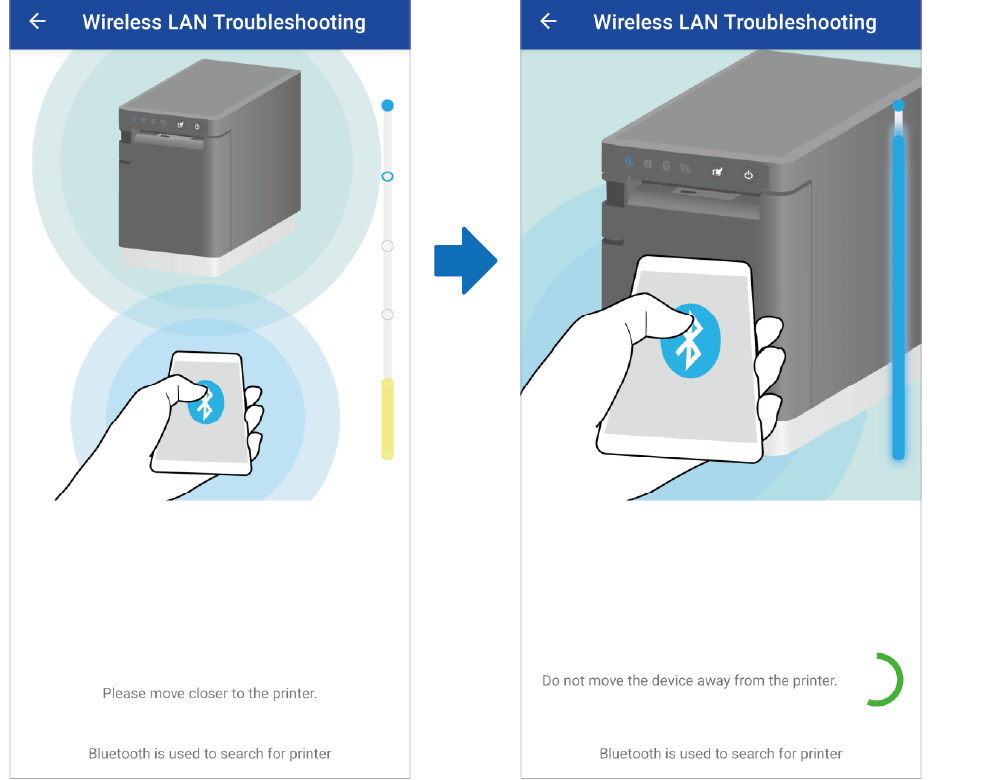

    • Hold the device above the printer.

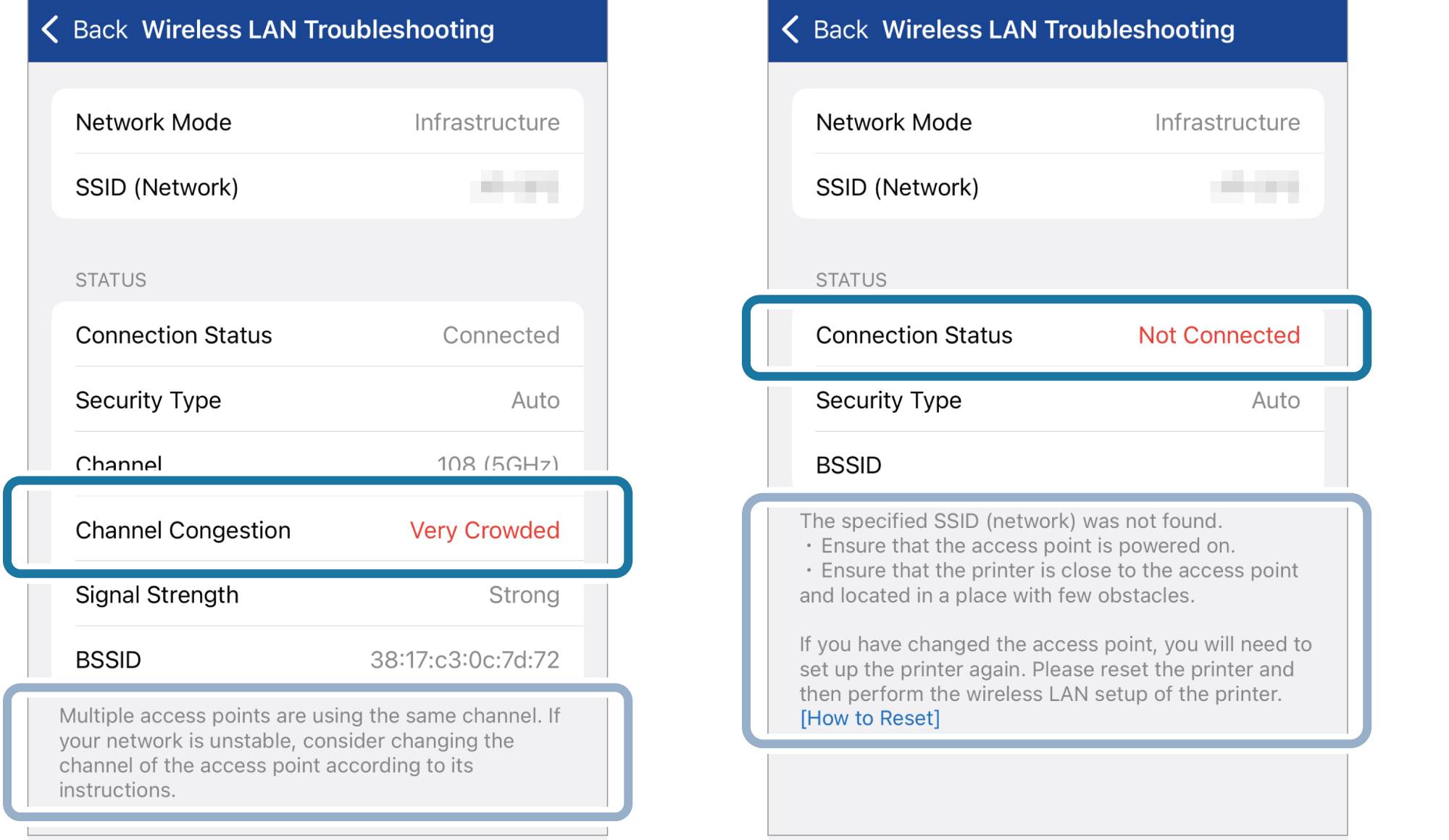

    • As shown in the example below, a description of the identified problem and the subsequent actions is displayed.
      Take measures against the problem.


    • If you are unable to solve the problem, please refer to FAQ - Wireless LAN Trouble During Operation.
