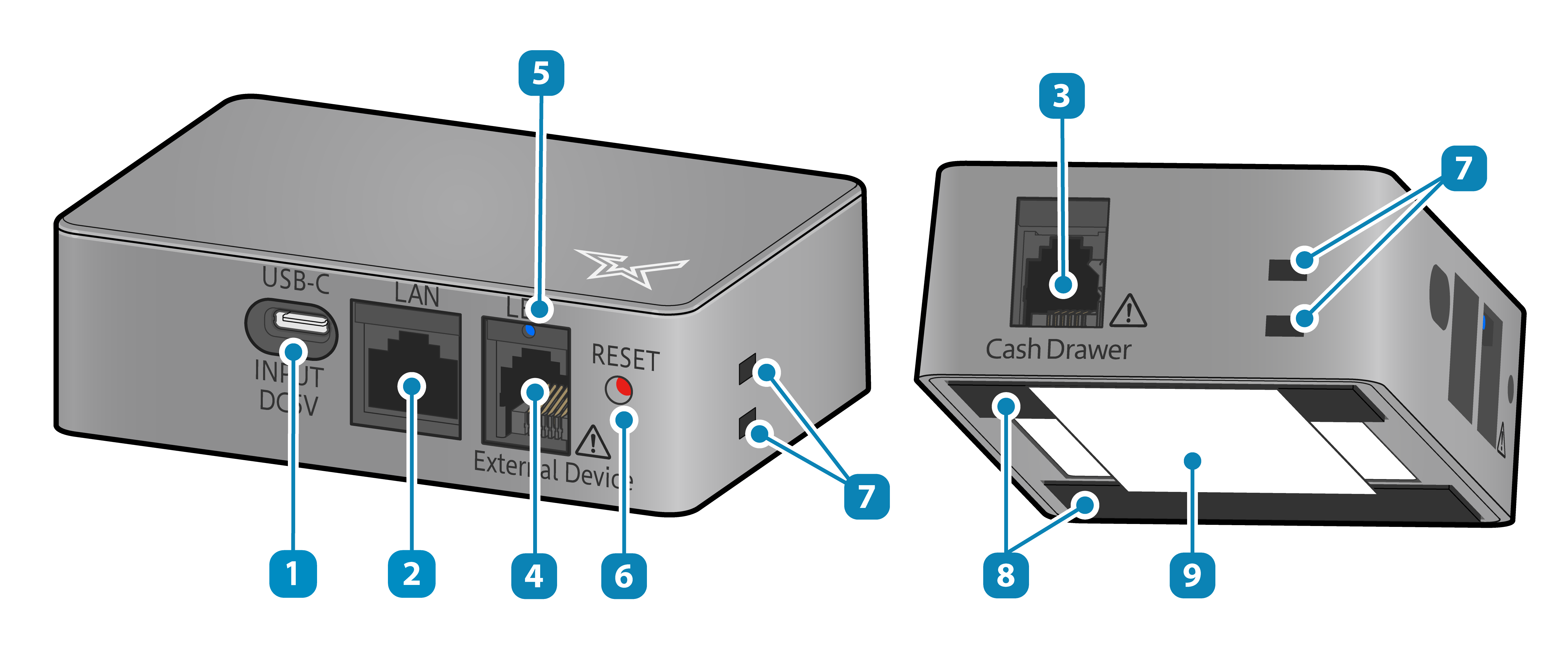

Part Names and Functions

USB-C port

Use a USB cable to connect to a USB power adapter or PC to power the main unit. Also, it is used to connect to Android, Windows, Mac, or Linux for communication.
Turn ON/Off Power
Connect with USB

LAN port

Use a LAN cable to connect to the network.
Connect LAN Cable

Port for driving external devices

Connect a cash drawer. Prioritize using this port (marked with Cash Drawer) to connect the cash drawer.
Connect Cash Drawer

Port for driving external devices

Connect the buzzer or a second cash drawer.
Connect Cash Drawer
Use Peripherals

LED indicator

Indicates the status of the product by lights on or blinking.

• When powered off ：Light off

• When powered on ：The LED lights up red and then changes to blue or green according to the network connection status.


Refer to LED Display for the status of network communication or error display.

RESET switch

Use this switch to initialize the communication settings of the product.
When You Cannot Connect (Initialization Procedure)

Cable fixing hole

Use a cable tie to secure cables to the product.
Bundle Cables

Magnet sheet

The product can be attached and secured on the cash drawer by the magnet.
Placement

Product Information Label

The label shows the product serial number, MAC address (wireless), Bluetooth device address, and MAC address (wired).

Product Information Label

 Top

Product Information Label

Information necessary for the product setup is indicated on "Product Information Label" that is temporarily attached to the bottom of the product.
To avoid losing it, please store the label in a set location or reattach it to a position suitable for your operation environment. In either case, choose a location or position while carefully considering security.

• Product serial number
• MAC address (wireless)
• Bluetooth device address
• MAC address (wired)
