Turn on the power

The power can be turned on by connecting the main unit to the power source (USB power adapter or PC) with the supplied or a commercially available USB cable.
When using a commercially available USB cable, prepare a USB cable that does not exceed 3 m and be sure to fully verify operation.

1. Connect a USB cable to the main unit

  • Connect a USB cable to the USB-C port on the main unit.

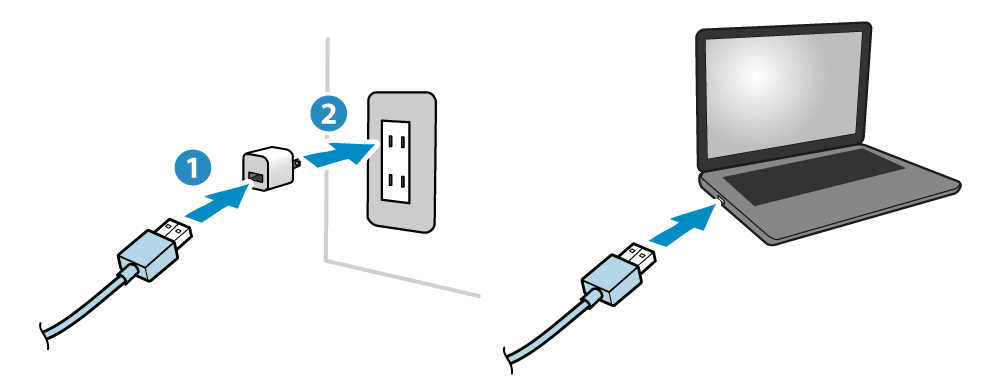

2. Connect the USB cable to the power source (USB power adapter or PC)

  • When using a USB power adapter, connect the other plug of the USB cable to the USB power adapter before plugging it into an electrical outlet.
  • When using a PC, connect the cable to the USB port on the PC.
    • 　　

Memo

  • The rated power consumption of this product is 0.5 A. Connect to an output port with 0.5 A or more.

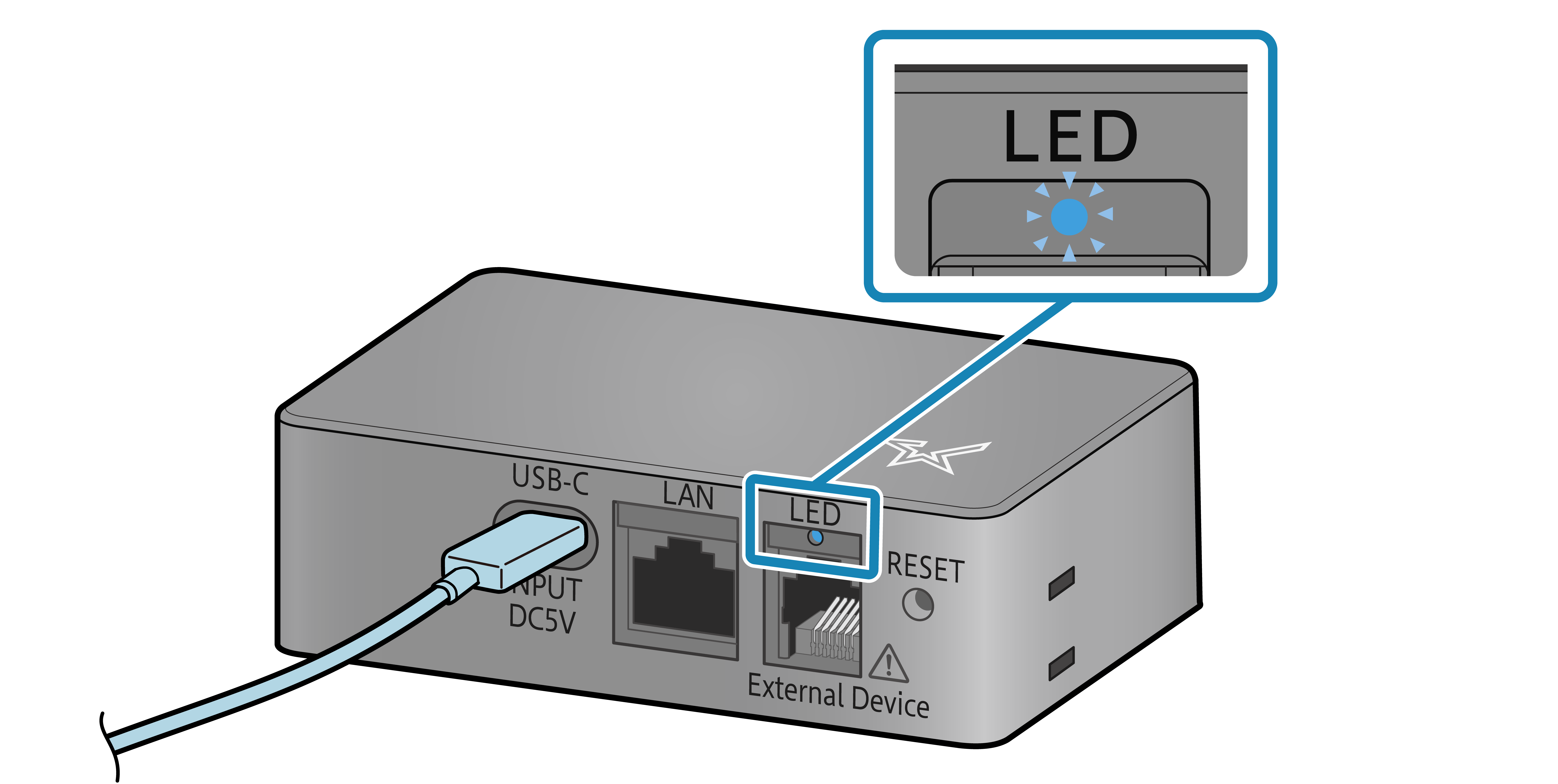

    • 3. Confirm LED indicator

    • When the power is turned on and the product becomes ready, the LED lights up blue or green according to the network connection status.
     Top

    Turn off the power

    1. Turn off the power

    • When using a USB power adapter, unplug it from the electrical outlet.
    • When using a PC, remove the USB cable from the PC.

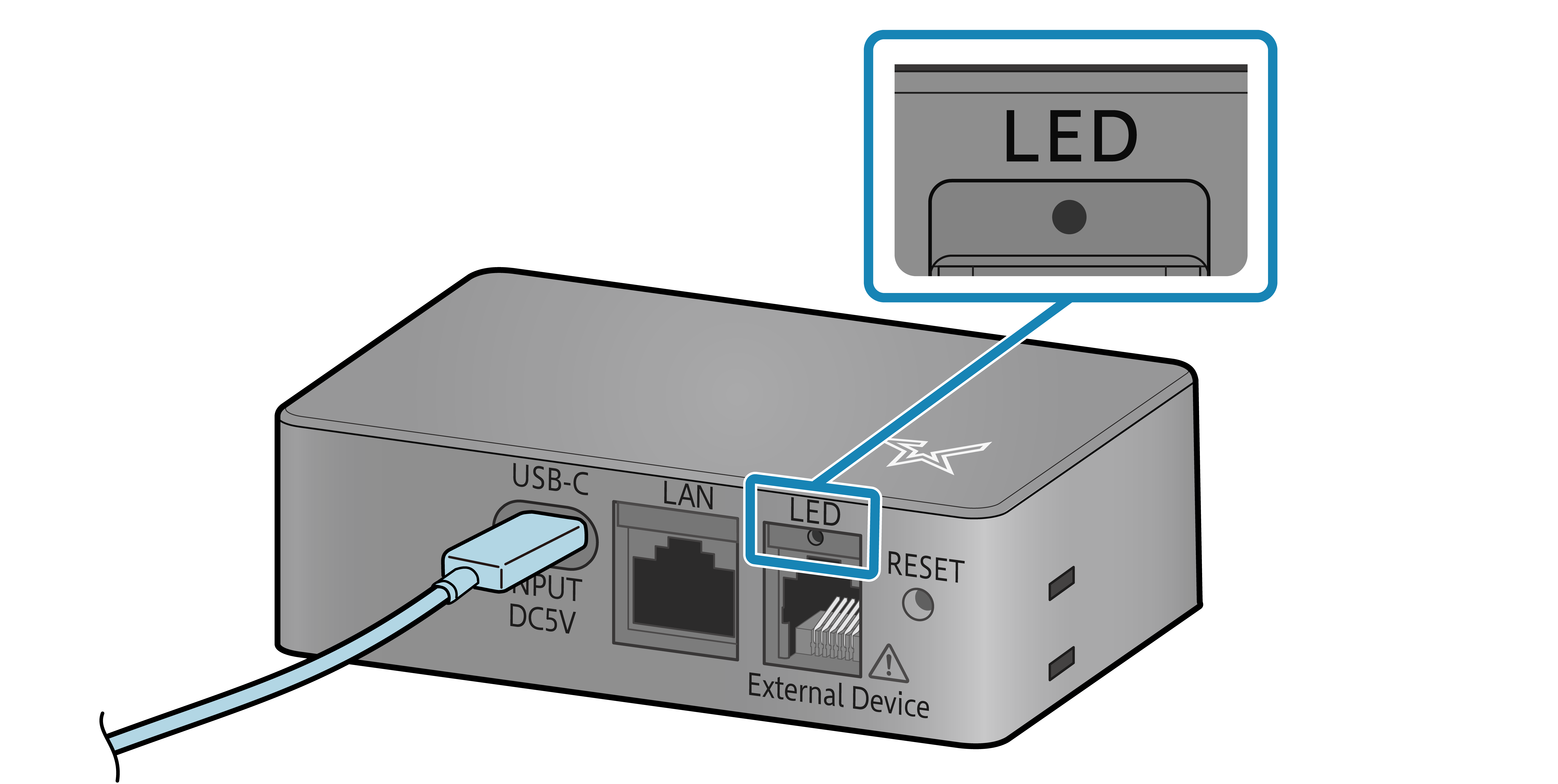

    2. Confirm LED indicator

    • The LED turns off when the power is turned off.
    • Confirm that the LED has turned off before turning the power on again.
