  • Use Peripherals

    If you connect the optional buzzer, it will sound according to your settings.

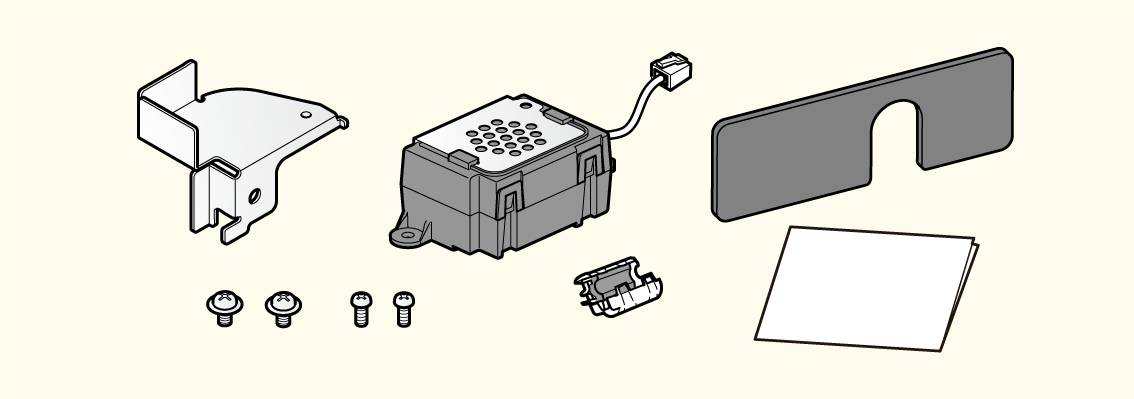

    Buzzer BU01

    1. Turn power off

    • When the USB power adapter is used, unplug it from the electrical outlet.
    • When the PC is used, remove the USB cable from the PC.

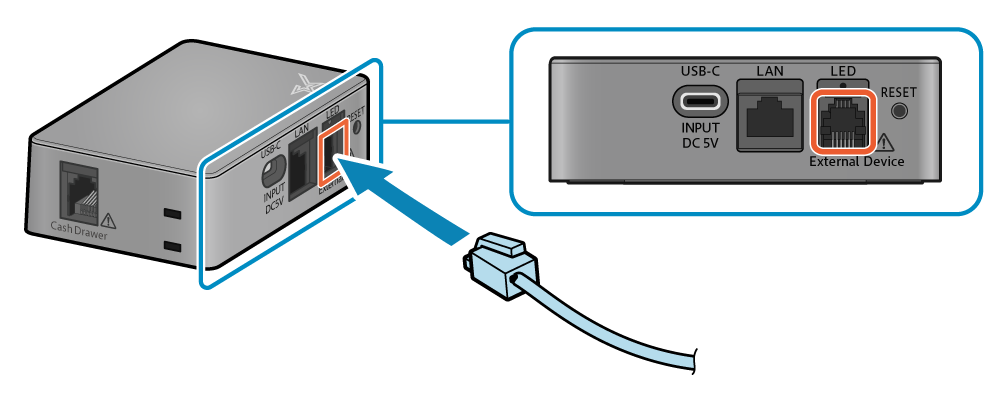

    2. Connect the buzzer cable to the main unit

    • Connect the buzzer connector to the external device drive port with "External Device" stamped on the main unit.
