  • Placement

    1. Installation

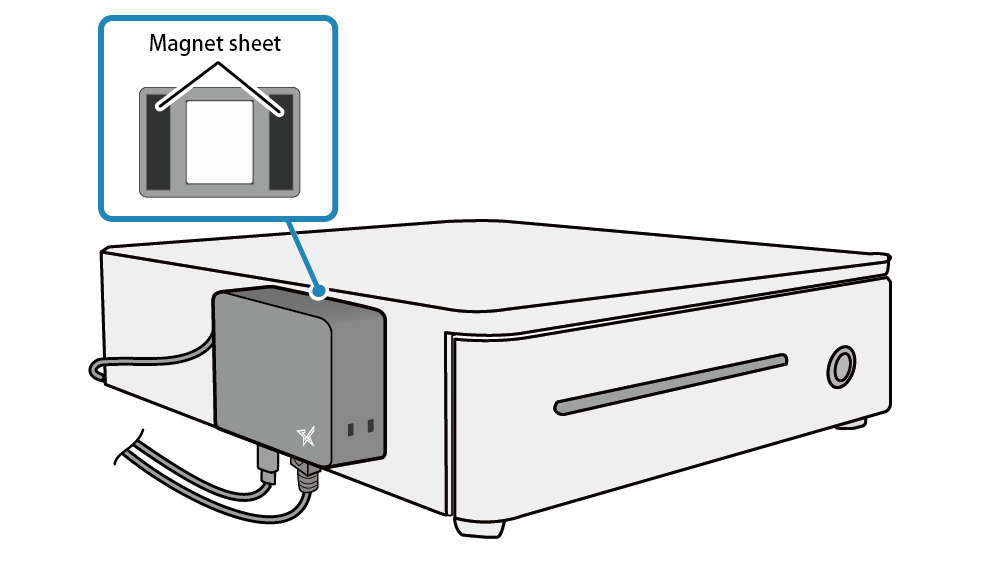

    • Attach the main unit to the side of the cash drawer (or a similar surface) using the magnet on the bottom of the unit.




    •
    • Place the main unit on a flat surface near the cash drawer.
