Daily Maintenance

To enable comfortable and safe use, conduct maintenance periodically. Before conducting maintenance, take note of the information in Safety Information - Maintenance.

Printer's external maintenance

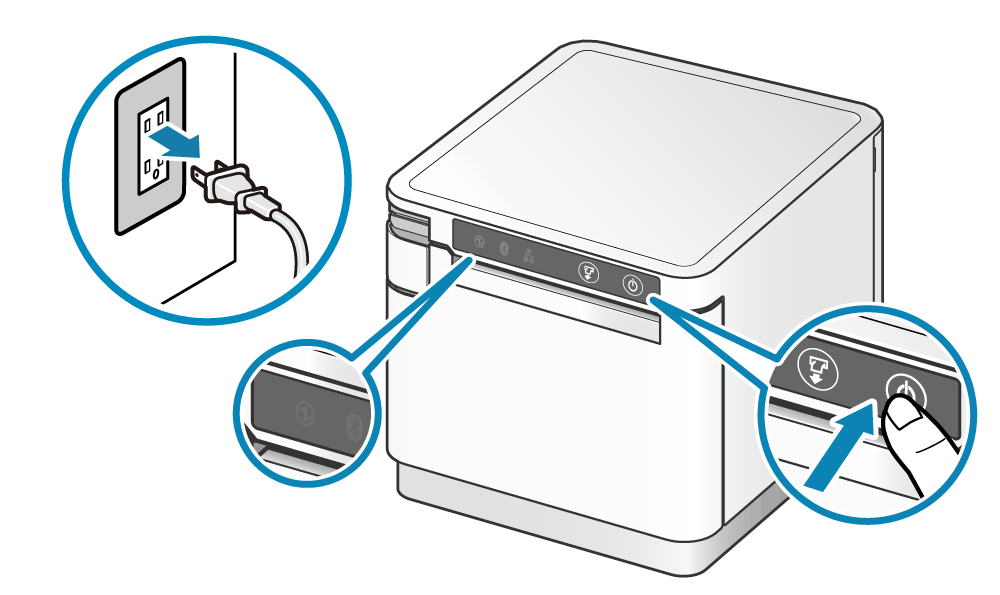

1. Turn power off

  • Turn the power off, and disconnect the power plug of the AC adapter from the electrical outlet.

External view
  • Wipe off the dirt on the plastic section using a soft, dry and clean cloth.
  • If it is very dirty, soak a soft cloth in water containing a very small amount of neutral detergent, completely squeeze the cloth and gently wipe off the dirt. Wipe off any moisture using a soft, dry cloth.

Caution

  • Do not use neutral detergent without diluting it. Otherwise, it will cause plastic parts to change color or deteriorate.
 Top

Interior maintenance

1. Turn power off

  • Turn the power off, and disconnect the power plug of the AC adapter from the electrical outlet.

2. Open printer cover

  • Pull the opening lever to open the printer cover .

Thermal head
  • Put an alcohol solvent (ethanol, isopropyl alcohol) on a cotton swab and wipe the thermal area of the head.
  • Remove the blackened paper powder from the surface of the thermal head.

Caution

  • The thermal head is a part that can easily be damaged. Use a soft cloth and carefully clean the head so it does not get any scratches.
  • Do not clean the thermal head immediately after printing when it is still hot.
  • There is risk that static electricity may damage the head after the thermal head is cleaned so be careful about static electricity.
  • Turn the power on only after the alcohol has completely dried.
Rubber roller
  • Wipe the debris on the rubber roller with a dry soft cloth.
  • Rotate the rubber roller while cleaning to make sure that the whole roller is cleaned.
Paper roll storage space
  • Remove any debris, dust and paper particles from the paper holder as well as any other objects that may have accumulated.
Near end sensor<Other than MCP30>
  • Remove any debris, dust and paper particles from the paper holder as well as any other objects that may have accumulated.
