mPOP Series
Unique Combined Receipt Printer and Cash Drawer
- Compact and Sleek Design
- All-in-one Package
- Smart Cabling
Features

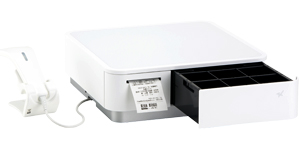

No printer-like nor cash drawer-like stylish appearance
Minimum footprint possible for a thermal printer and cash drawer combined product. Color selection from Snow white and Piano black appealing the beautiful appearance from 360-degree view and high-class mood.
All-in-one Package
Together with the mPOP, the box has everything such as tablet stand, power cable, mount bracket (to anchor the product) and barcode reader (according to the version).
Smart Cabling

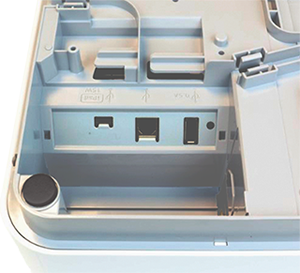

The bottom plate has channels and hooks to house and keep inside various cables.
Has capacity to power peripheral devices and charge tablets and unify the wiring to only one power cable to mPOP.
If you would like to see information other than the above features, please refer to the “Others” section.
Dimensions（mm）
Specifications
| Model | POP10 | POP10CI | POP10CBI | |||||
|---|---|---|---|---|---|---|---|---|
| Body Color | Snow White | Piano Black | Snow White | Piano Black | Snow White | Piano Black | ||
| Dimensions (W)x(D)x(H) | (W)308×(D)300×(H)100 | |||||||
| Weight | 3.9 kg (excluding cable, roll paper, optional parts and accessories) |
|||||||
| Printer | Printer Method | Direct Thermal Line Printing | ||||||
| Print Speed | Up to 100 mm/second | |||||||
| Autocutter (guillotine) | Full or Partial cut (Leave centre point) | |||||||
| Print Width | 54mm、50.8mm、48mm | |||||||
| De-curl Function | Supported | |||||||
| Reliability | Printer | 60 million lines (MCBF) | ||||||
| Autocutter | 1 million cuts(Partial cut mode) | |||||||
| Thermal print head | 100km | |||||||
| Paper Specifications: | Paper Type | Thermal Roll Paper | ||||||
| Paper Width | 57.5 mm±0.5 mm | |||||||
| Roll Diameter | Max. 50 mm | |||||||
| Thickness | 53–75 μm | |||||||
| Cash Drawer | Drive Method | 5 V Motor (Quiet open/close) | ||||||
| Tray Capability | 4 bill types and 6 or 8 coin types | |||||||
| Reliability | 300 thousand of times (open/close) | |||||||
| Sensors | Cover Open Sensor | Yes | ||||||
| NE Sensor | No | |||||||
| PE Sensor | Yes | |||||||
| BM Sensor | No | |||||||
| Power Supply | Internal power supply | |||||||
| Interface | Bluetooth®2.1, Class 1 | – | Bluetooth®5.0, Class 2 | |||||
| USB-A(0.5A) x 2 | USB-A(0.5A) x 1 | USB-A(0.5A) x 3 | ||||||
| USB-A(1.5A)×2 | USB-C®×1 (Lightning communication and AOA are supported) |
USB-C®×1 (Lightning communication and AOA are supported) |
||||||
| USB-B × 1 | USB-B × 1 | USB-B × 1 | ||||||
| Cash drawer port | – | – | ||||||
| Security Lock | Kensington compatible slot | |||||||
| Accessories included in the box | Tablet stand, Sample thermal roll paper (according to the version), Mount bracket (Anchor tool), USB cable (B-A), Mount template, Power cable, Setup sheet, Barcode reader (according to the version) | |||||||
| Options | Under counter mount kit, Customer display, Barcode reader | |||||||
| Emulation | StarPRNT | |||||||
| OS | iOS/Android/Windows/Linux/macOS | |||||||
Related Contents
For Corporate / Developers
Manual/Store Applications
Accessories/Options
Accessories
Power cable
(2 cables for E+U model)
Tablet stand
Template
Mounting bracket
Sample Paper Rolls (According to the version)
USB Cable (Type-B to A)
<Barcode Reader Included Model>
-Barcode reader
-barcode stand
The included accessories vary depending on the model.
Options
Under Counter Mount Kit
Can be installed under shelves
Compatible software
Other
Compact and High-functional 2-inch Thermal Printer
De-curl function (to avoid giving curled paper).
High quality 2 inch thermal printer easy to change paper roll.
Smart Connectivity
POP10
Connectable with host devices via Bluetooth® or USB interface (Dual interface). Connectable with tablets and other peripheral devices designated by Star Micronics via each of the 4 type A USB ports (0.5A x 2 / 1.5A x 2).
POP10CI
Connectable with host devices via USB interface. Connectable with tablets and other peripheral devices designated by Star Micronics via each of the 3 type USB ports (USB-A / USB-B / USB-C).
Support USB-C to Lightning for iOS device and AOA for Android device which can communicate and charge at maximum 15W.
POP10CBI
Connectable with host devices via Bluetooth® or USB interface. Connectable with tablets and other peripheral devices designated by Star Micronics via each of the 3 type USB ports (USB-A / USB-B / USB-C).
Support USB-C to Lightning for iOS device and AOA for Android device which can communicate and charge at maximum 15W.
Innovative Cash Drawer
Quiet drawer driven by 5V motor.
Security with electronic lock key.
Tray for 4 types of bills and 6 or 8 of coins. Additional storage space beneath the coin tray. Original design for coin space adjustment and easy bill pick-up.
Available with Flat Bill cash management.
Store Applications
Easy installation, setting configuration and other practical supports by special utility applications downloadable from App Store and Google Play.
* iOS or Android utility applications.
Abundant software development environment
We provide various software that supports print control from different host system environments and contribute to reducing the person-hours for printer connection development.
- StarXpand® SDK to help you control printing from native apps
- StarXpand® SDK for React Native for Cross-platform
1D USB Barcode reader specialized for mPOP
1D USB barcode reader best matching the mPOP design is included (according to the version). The barcode reader communicates with the tablet via mPOP.
StarwebPRNT Support
Enables printing from Web-based applications
(by using StarwebPRNT Browser)
Apple MFi Certified
POP10 and POP10CBI can be connected to iPad, iPhone and iPod touch via bluetooth.
POP10CI and POP10CBI can be connected to them via USB-C.
(Note)
*The printer firmware may update automatically once a new version or feature is available.
*All company and product names are trademarks or registered trademarks of their respective owners.
