Automatic Lathes
A Complete Lineup Fully Covering All Processing Needs!
Product List
CNC Swiss Type Automatic Lathe
| Bar size | ～φ10 | ～φ13 | ～φ16 | ～φ20 | ～φ26 | ～φ32 | ～φ38 | ～φ51 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Comb blade type | Single | Without back turret |

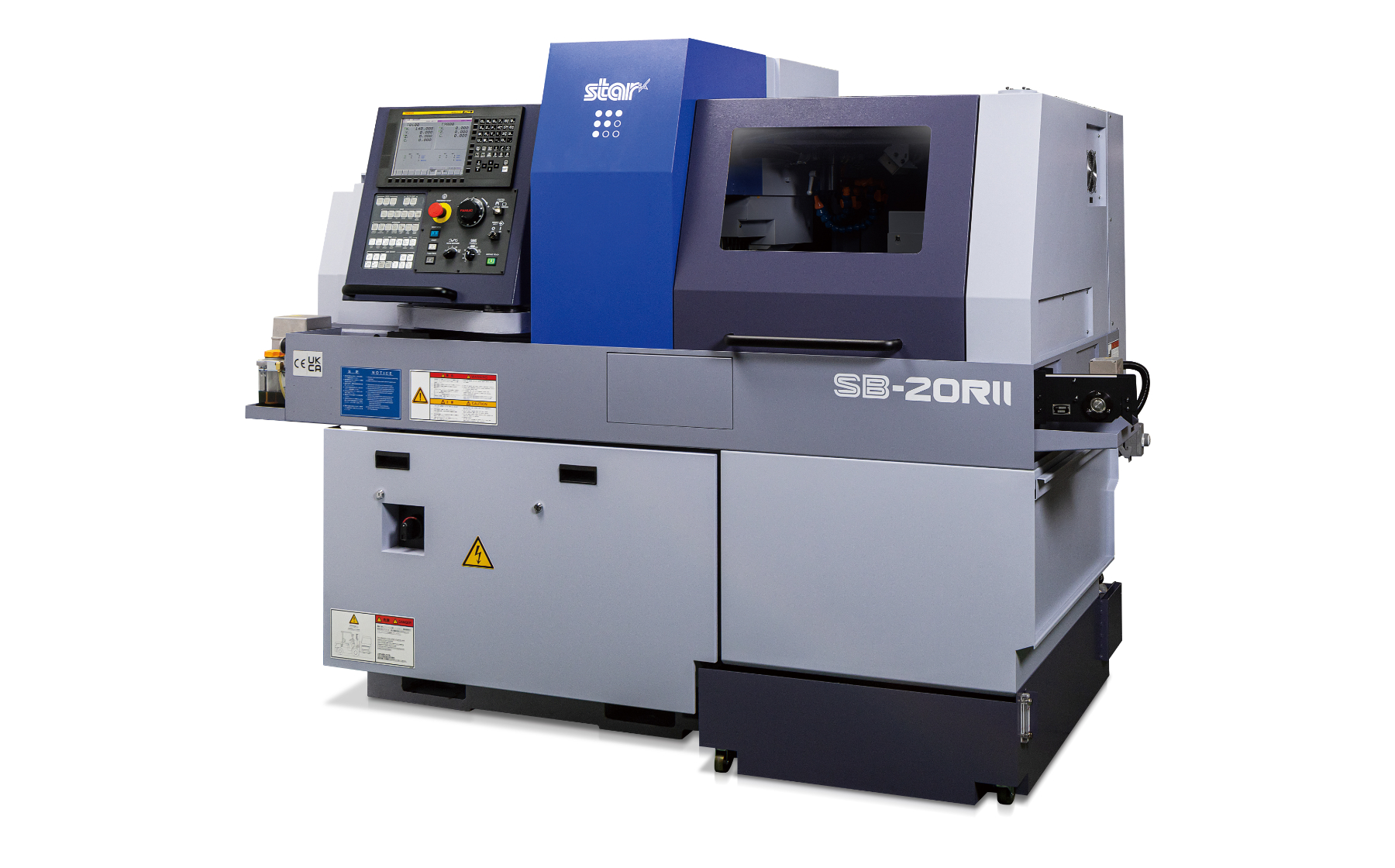

4 axis | SB-16R type C | SB-20R type C | ||||||
| With back turret |
5 axis | SR-10J type C | SB-12R type G | SB-16R type G | SB-20R type G SR-20JⅡ type A |
SR-32Ⅲ type A | |||||
| 6 axis | SL-7/10 | SR-20JⅡ type B SR-20RⅣ |
SD-26 type S SD-26 type G/E/C |
SR-32JⅢ type B | |||||||
| Double | With back turret |
8 axis | SW-12RⅡ | SR-38 type B | |||||||
| 9 axis | SW-20 | ||||||||||
| Comb blade + turret |
With back turret |

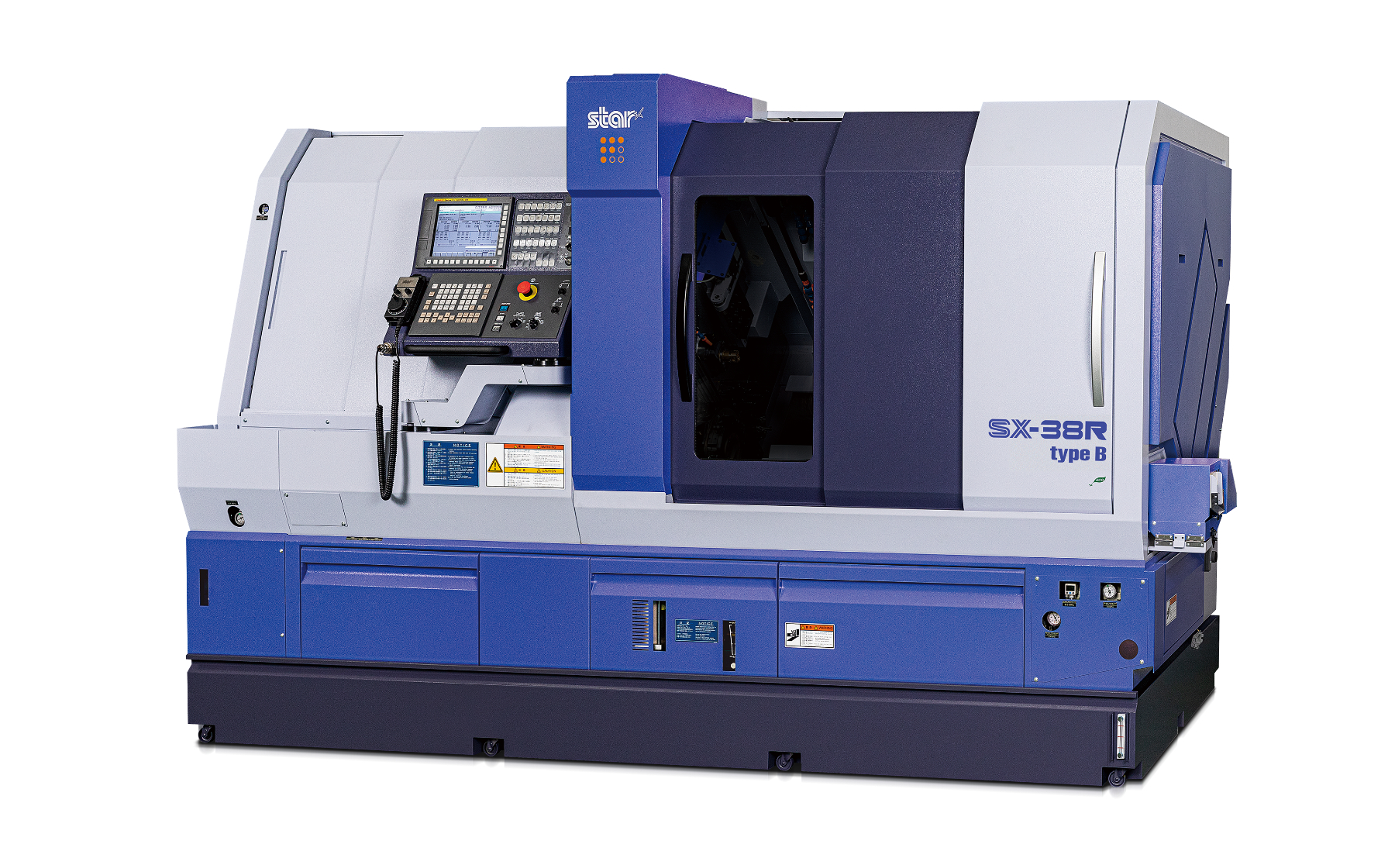

9 axis | SV-20R | SX-38 | |||||||
| Turret type | Triple turret | 10 axis | ST-20 | ST-38 | |||||||
*The number of shafts does not include the B shaft or C shaft.
CNC automatic lathe
| Bar size | ～φ10 | ～φ13 | ～φ16 | ～φ20 | ～φ26 | ～φ32 | ～φ38 | ～φ51 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Comb blade type | Single | Without back turret | 4 axis | ||||||||
| With back turret | 5 axis | SB-20R type N | |||||||||
| Turret type | Double turret | 7 axis | SK-51 type A | ||||||||
| Triple turret | 10 axis | ||||||||||
*The number of shafts does not include the B shaft or C shaft.
