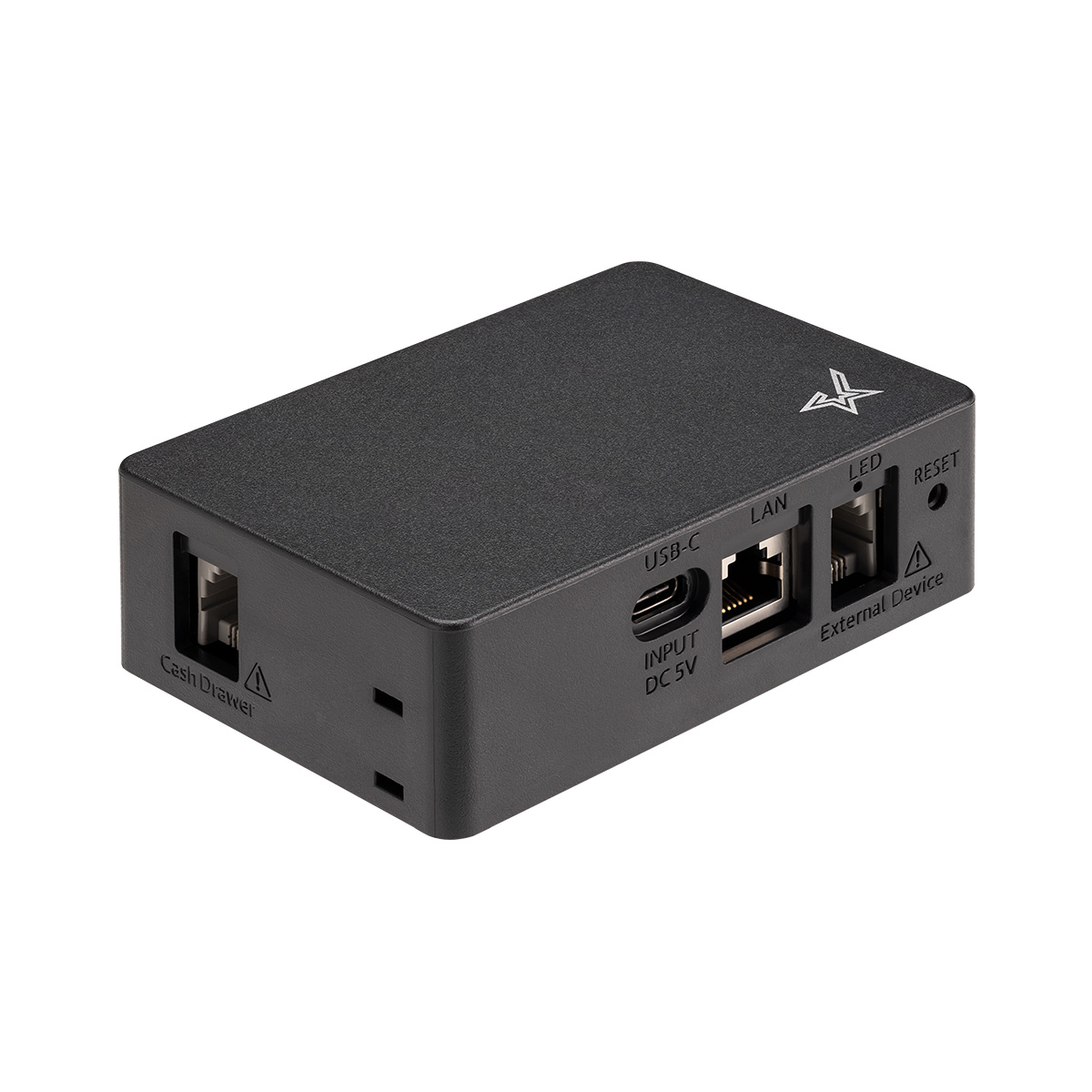

mC-Connect Drawer
A compact cash drawer control device that provides four communication options to conventional cash drawers
- Supports four interfaces in a single device, enabling flexible connectivity
- Compatible with conventional cash drawers
- Makes complex Wireless LAN settings easy for anyone
Features
Supports four interfaces in a single device, enabling flexible connectivity.

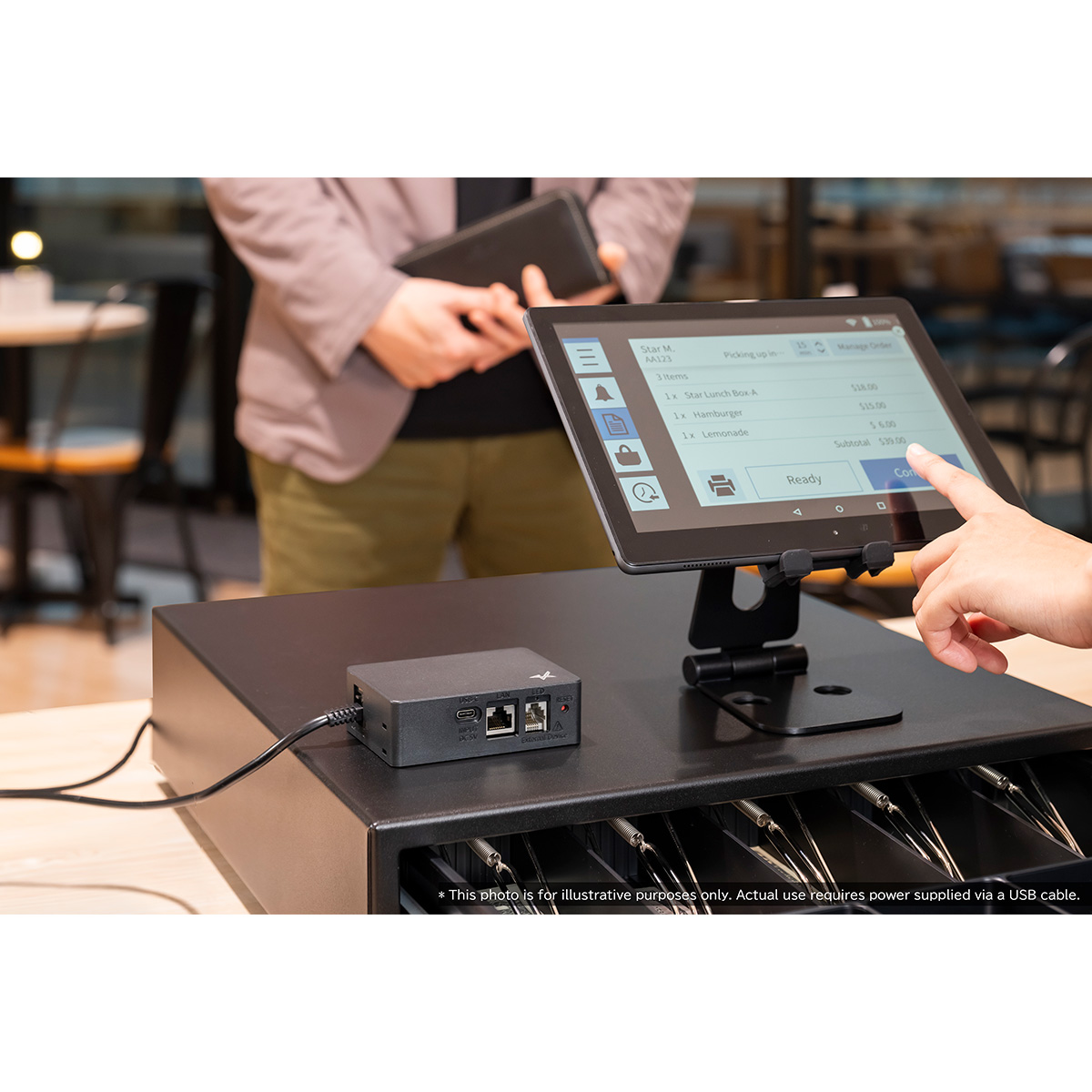

Choose the communication method from four interfaces—wireless LAN, Bluetooth® LE, USB, and Ethernet— to connect with POS terminals and suit diverse store environments and use cases. There is no longer any need to purchase additional cash drawers for each desired interface, significantly reducing costs.
Compatible with conventional cash drawers.
It works with conventional cash drawers that use standard RJ-12 modular cables. It also maintains compatibility with our existing software offerings.
Makes complex Wireless LAN settings easy for anyone.
By using the Star Quick Setup Utility configuration app for iOS and Android™ and following the on-screen instructions on a mobile device, anyone can easily complete wireless LAN setup in-store.
If you would like to see information other than the above features, please refer to the “Others” section.
Dimensions（mm）
Specifications
| Series | mC-Connect Drawer |
|---|---|
| Model Name | MCD10UEWB BK |

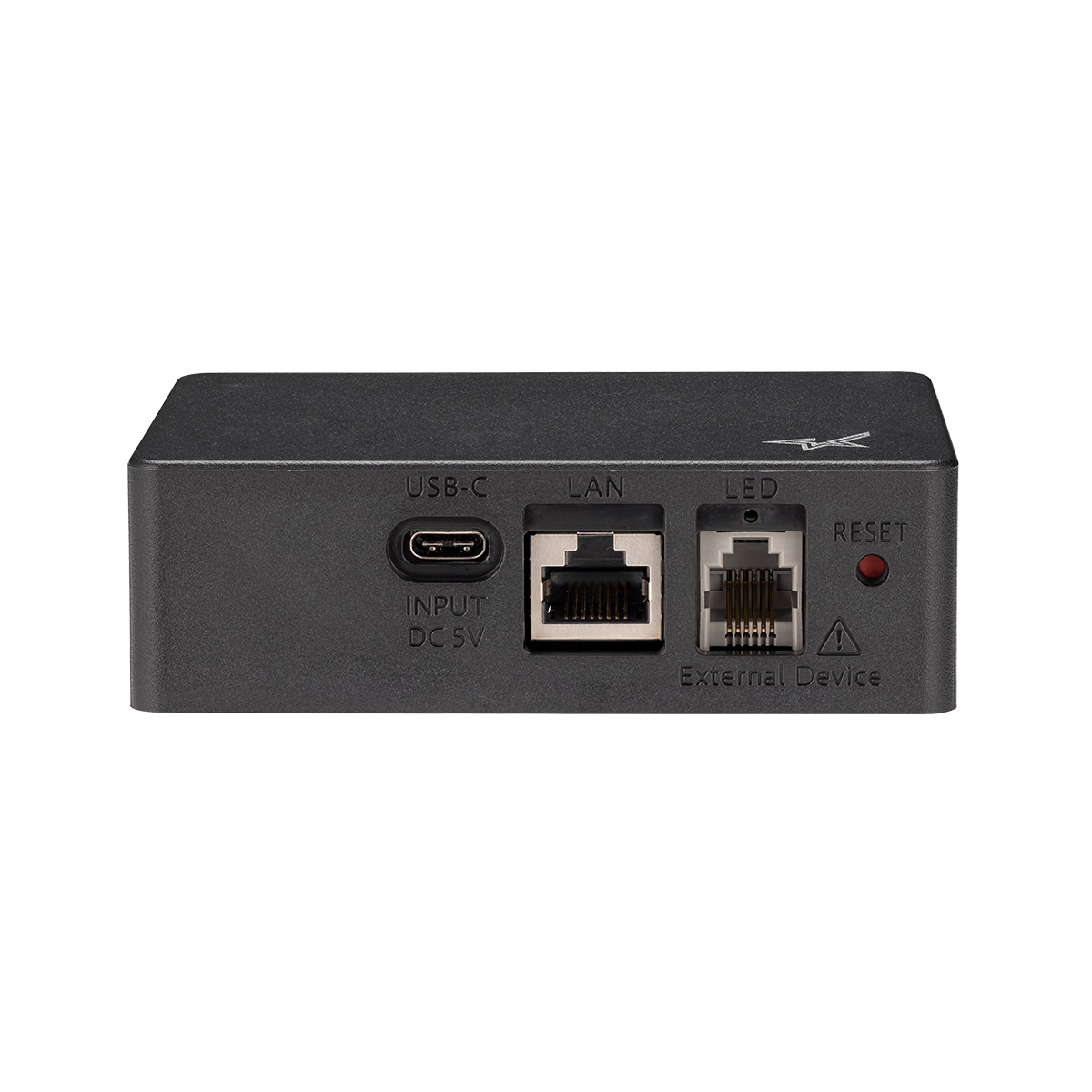

| Interface |
USB-C x１: (also serves as power) Ethernet x１ Wireless LAN（2.4GHz IEEE 802.11b/g/n） Bluetooth LE（Bluetooth 5.0） Cash drawer ports x2 |
| Body Color | Black |
| Emulation | StarPRNT |
| Power Supply | DC5V 0.5A (USB Bus-Powered) |
| Dimensions | 98 × 67 × 31mm (W x D x H) |
| Weight | Approx. 105 g | Accessories included in the box |
USB cable, Safety sheet, Setup sheet |
Related Contents
For Corporate / Developers
Manual/Store Applications
Accessories/Options
Accessories

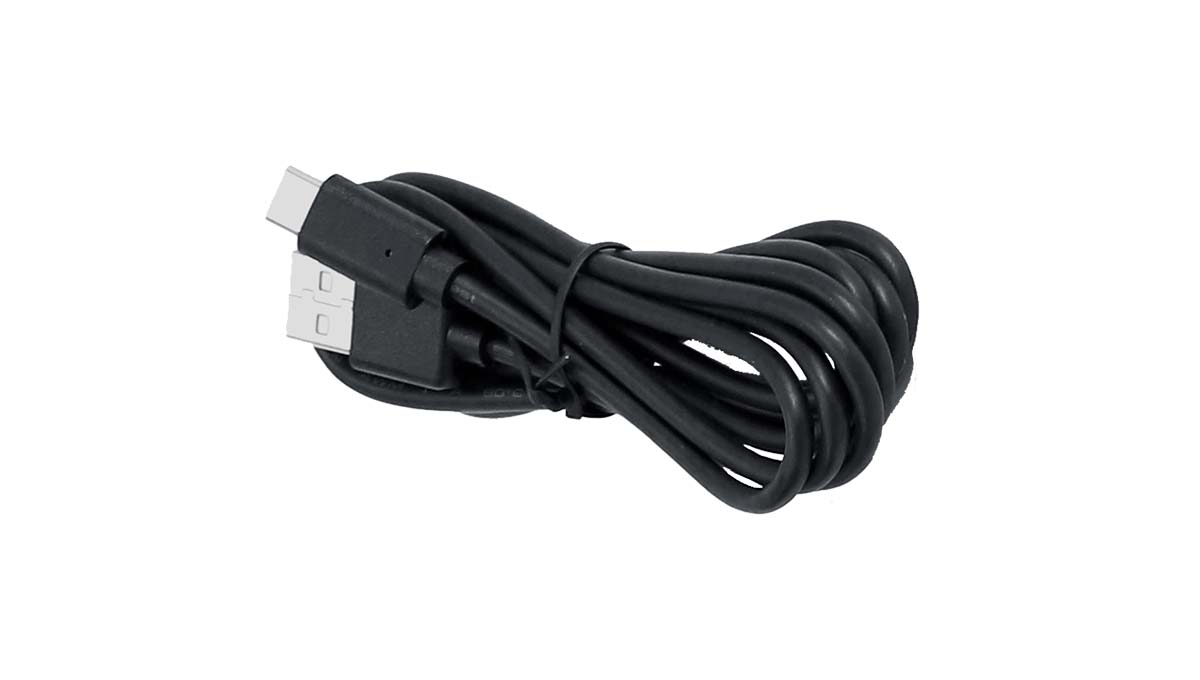

USB cable
For details on accessories, refer to the manual or setup guide.
Options

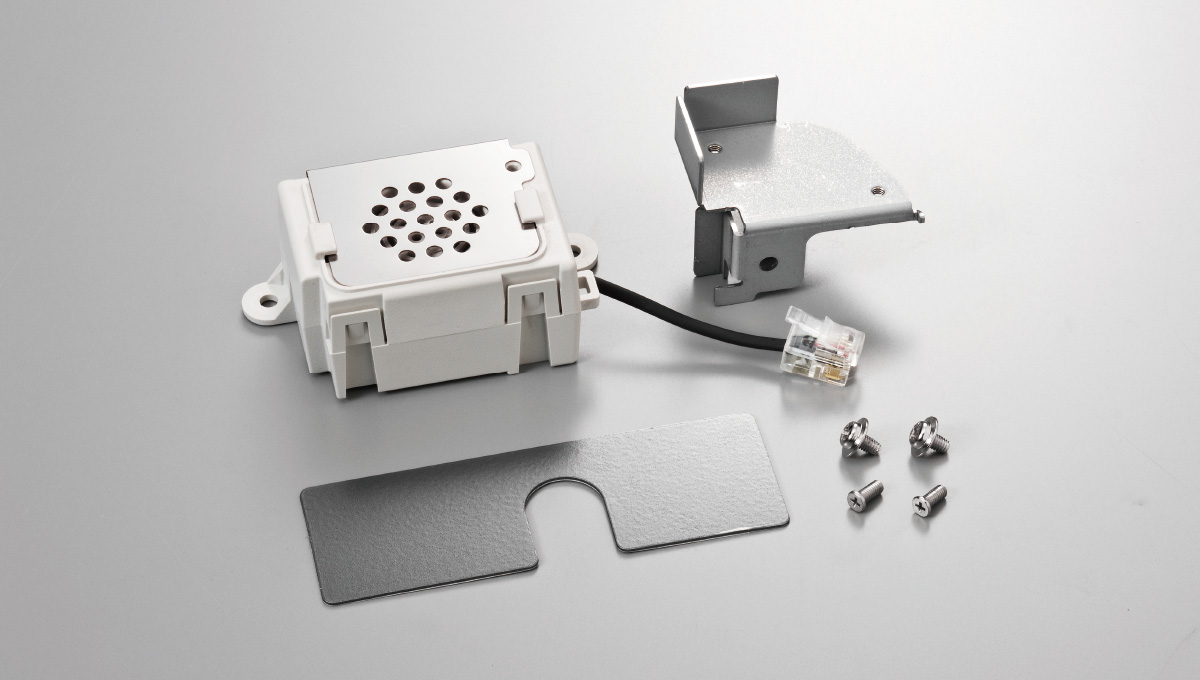

Buzzer
『BU01-24-A』
Compatible software
Others
Connect two cash drawers simultaneously
With two cash drawer ports, you can connect two cash drawers simultaneously. Users can independently trigger open operations and obtain open/close status for each cash drawer connected to an mC-Connect Drawer, enhancing flexibility in store operations.

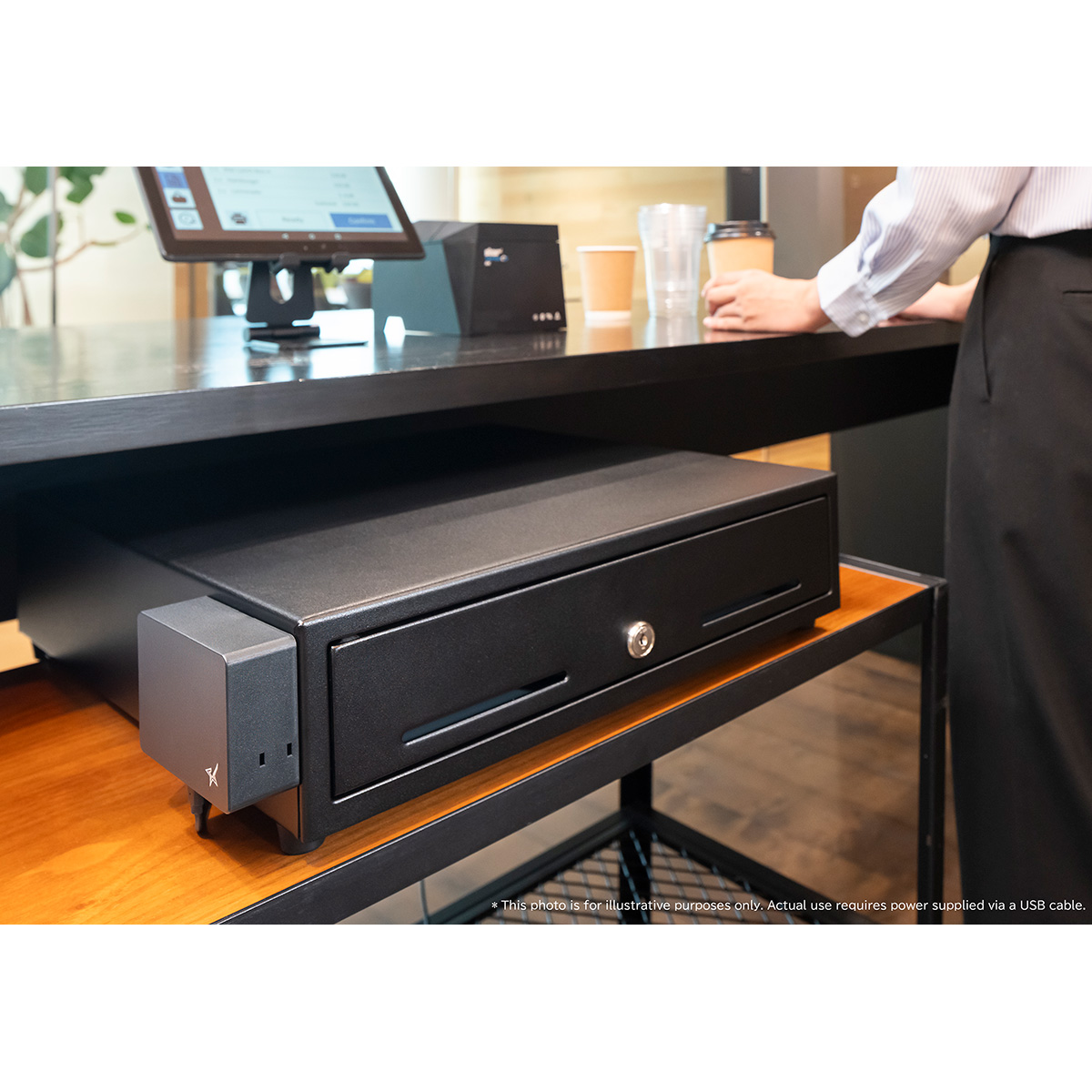

Design that blends into any store layout, with excellent install ability

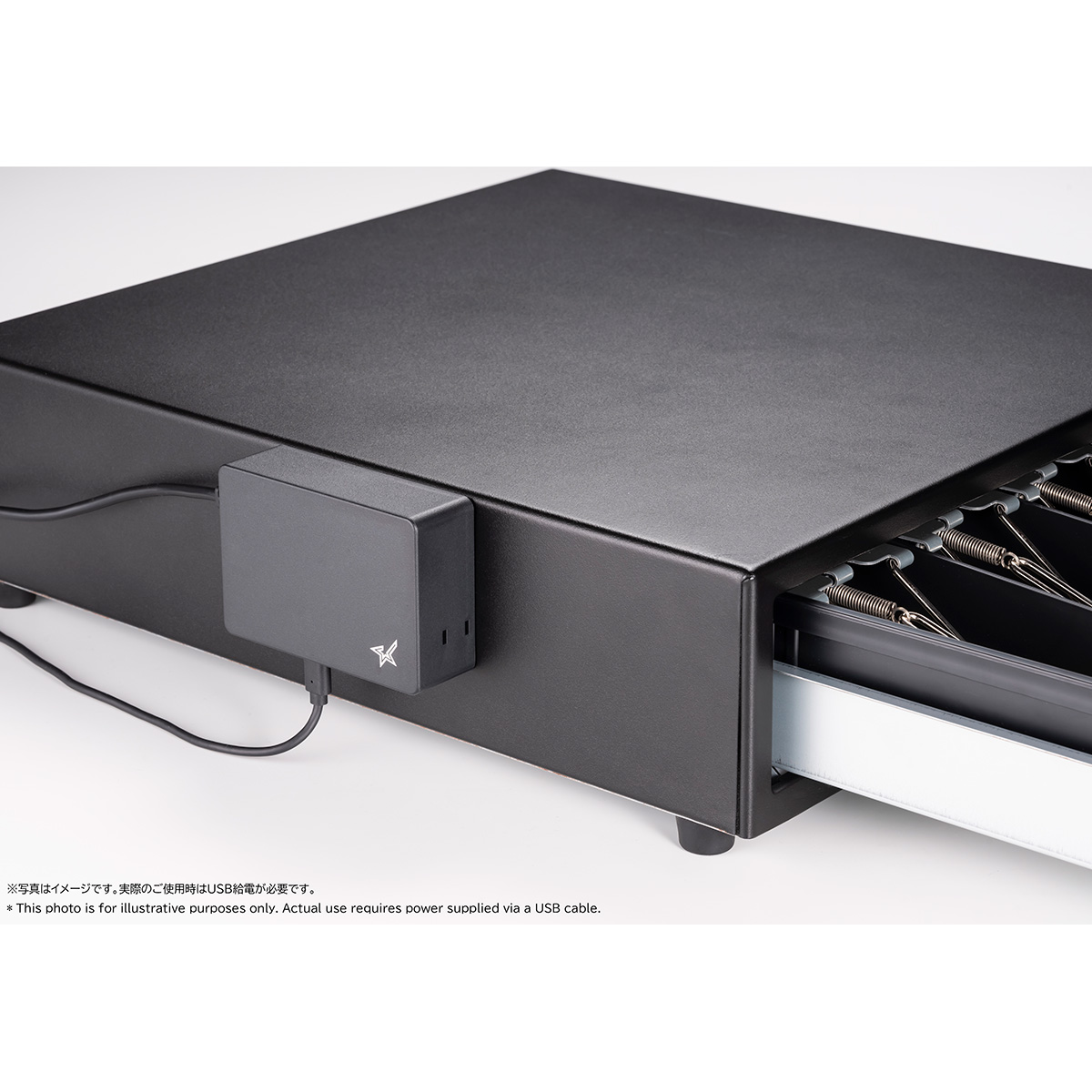

Its compact design enables space-saving, highly flexible installation, and its stylish look complements a wide range of store layouts. Built-in magnets allow direct mounting to cash drawers for clean, secure attachment.
Star Sustainability
In pursuit of more environmentally friendly products, mC-Connect Drawer is committed to the following efforts:
* Eliminated plastic materials from packaging.
* Used 50% bio-based plastic in the housing.
