NEW

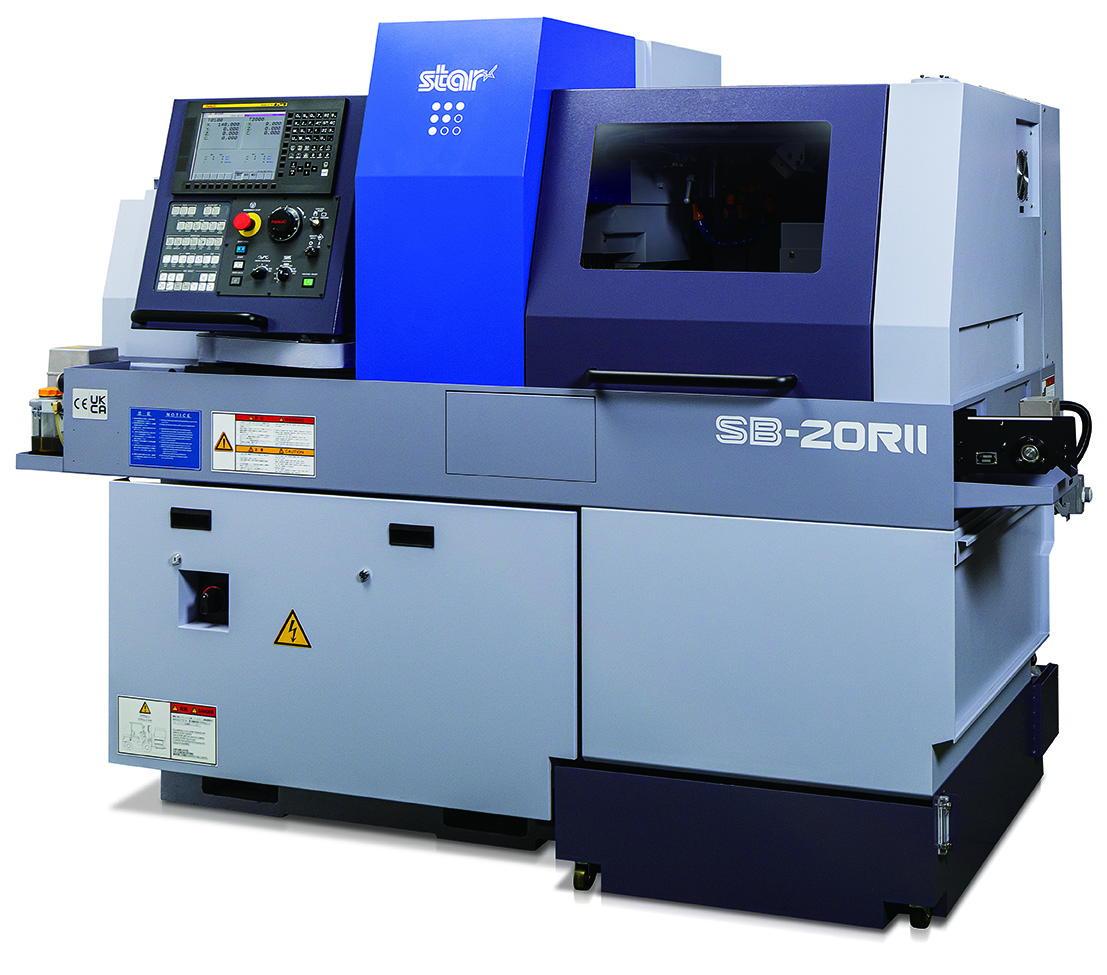

SB-20RⅡ
The latest SB-R model was born in pursuit of the functionality and performance needed today, based on the series’ traditional high-rigidity structure.
- A unique slanted dovetail slideway structure for insreased rigidity of the tool post.
- A 1.5/2.2 kW spindle motor is employed on the sub spindle to improve output. Even the sub spindle realizes a maximum speed of 10000min⁻¹.
- Two NC machines to choose from

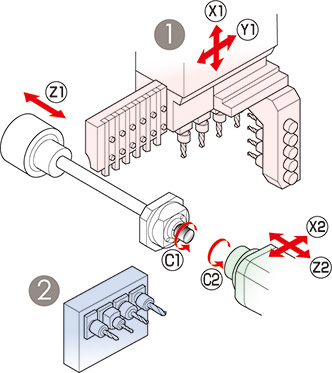

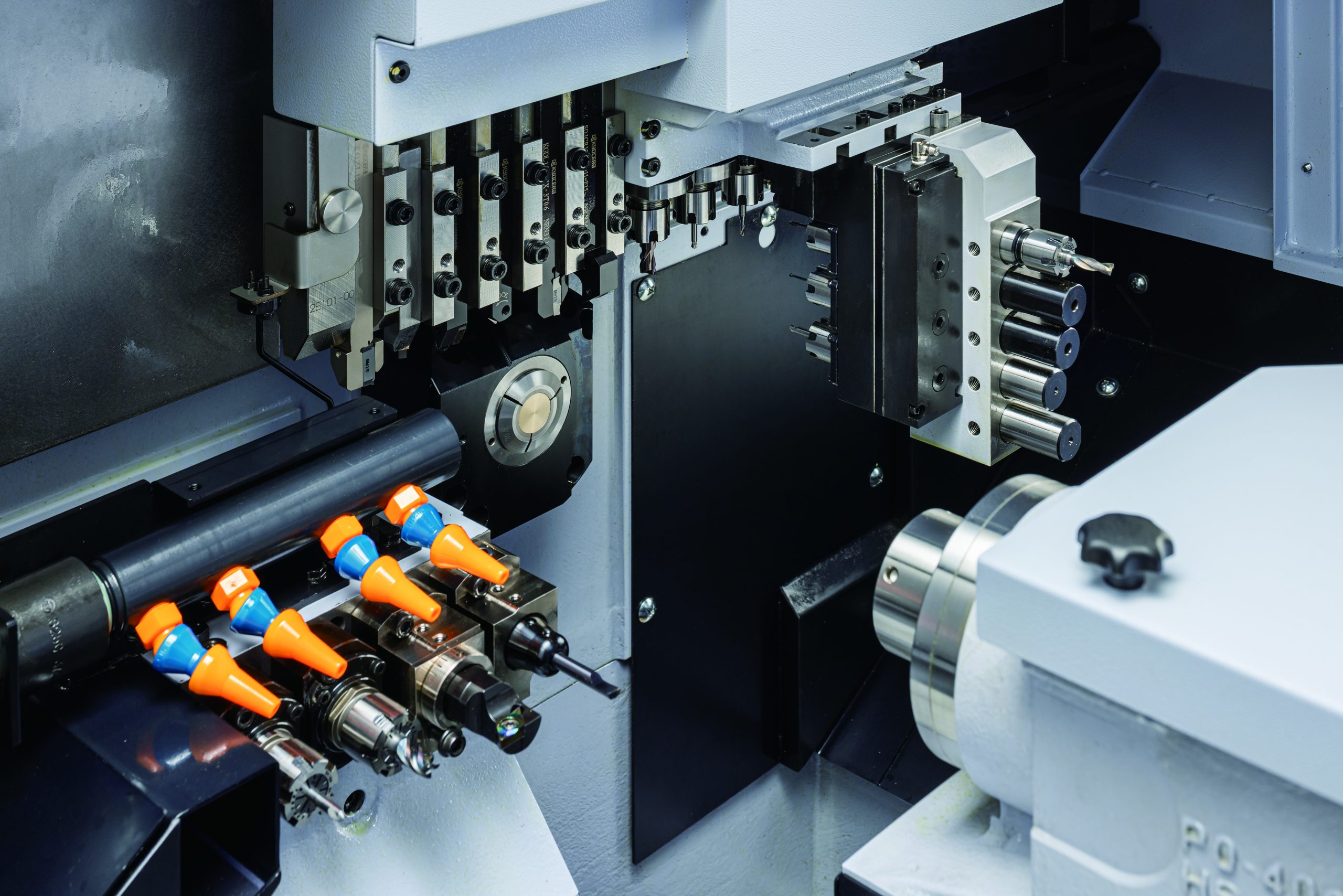

Tool Post
| Tool Post | Tooling | ||
|---|---|---|---|
| ① |  |
Turning tool | 5 tools(□16mm) |
| 6 tools(□12mm) | |||
| Frong-end working tool | 4 tools or 5 tools | ||
| Power-driven tool | 2 tools | ||
| Cartridge type | 3 Pos. | ||
| ② |  |
Rear-end working tool(Stationar tool/Power-driven tool) | max.4 tools |
Specifications
| Item | SB-20RⅡ | |
|---|---|---|
| Max.machining diameter | ø 20mm (25/32in) OP:ø 25.4mm (1in) | |
| Max.headstock stroke | G.B.type | 205mm (8in) MR25:196mm (7-15/16in) |
| N.G.B.type | Bar diameter×2.5mm (Max.50mm) (Max.1-31/32in) | |
| Number of turning tools | 6 tools□12mm | |
| 5 tools□16mm | ||
| sleeve holder | 4 tools(ø32×2, ø22×2） | |
| 5 tools(ø22×5） | ||
| Max.drilling capability | ø 12mm | |
| Max.tapping capability | M10 × P1.5 | |
| Power-driven att. | Number of tools | Cross milling:2 tool |
| Cartridge type:At 3 position | ||
| Max.drilling capability | ø 7mm | |
| Max.tapping capability | M6×P1.0 | |
| Spindle speed | max.8,000min-1 | |
| Drive motor | FANUC:1.2kW/MITSUBISHI:0.75kW | |
| Rapid feed rate | 35m/min (X1,Y1,Z1,X2,Z2) | |
| Main spindle indexing angle | C-axis control | |
| Main spindle speed | max.10,000min-1 | |
| Main spindle motor | 2.2kw(Continuous)/3.7kw(10min./25%ED） | |
| Dimensions (W×D×H) | 2,070×1,095×1,775mm | |
| Weight | 2,000kg | |
| Power consumption | FANUC:4.2kVA/MITSUBISHI:4.0kVA | |
Backworking Attachment
| Item | SB-20RⅡ | ||
|---|---|---|---|
| Max.chucking diameter | ø 20mm(25/32in) OP:ø 25.4mm(1in) | ||
| Max.length for front ejection | 105mm (4-9/64in) | ||
| Max.work projection length | 30mm (2001/3/16in) | ||
| 6spindle backworking unit | Number of tools | 4 tools (Stationary tool/Power driven tool) | |
| Max.drilling capability | Stationary tool | ø 8mm (5/16in) OP:10mm(25/64in) | |
| Power-driven att. | ø 6mm (15/64in) | ||
| Max.tapping capability | Stationary tool | M6 × P1.0（OP:M8×P1.25） | |
| Power-driven att. | M5 × P0.8 | ||
| Sub spindle indexing angle | C-axis control | ||
| Sub spindle speed | max.10,000min-1 (OP:max.8,000min-1) | ||
| Sub spindle motor | 1.5kw(Continuous)/2.2kw（15min./60%ED) | ||
