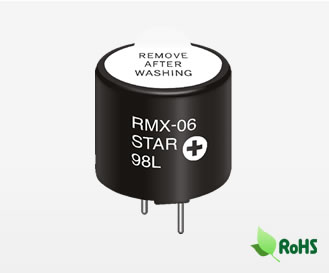

RMX Series
Wide frequency range
Features
- Wide frequency range(Min. 80dB at 10cm is specified for the band from 2,000Hz to 3,000Hz)
- Dip-solderable and washable

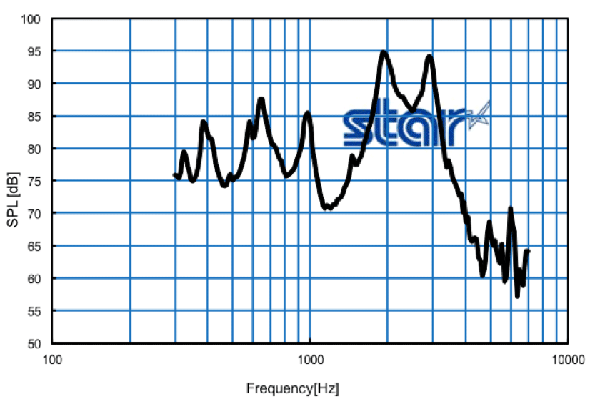

Frequency Response
- RMX-06
| Conditions |
Measurement in the standard test fixture Measurement distance: 10cm Applied power: Rated input *Square wave 1/2 duty |
|---|---|
| Notes | The frequency curve shows a typical characteristic and it is not the guaranteed sound pressure level(SPL). |
Specifications
| Model Name | RMX-06/ RMX-12Y |
|---|---|
| SPL(dB/10cm) | Min. 85 |
| Rated Voltage(V) | 6.0 / 12.0 |
| Operating Voltage(V) | Max. 12.0/18.0 |
| Consumption Current (mA) | Max. 40 |
| Rated Frequency(Hz) | 2048 |
|---|---|
| Operating Temperature(°C) |
-40 ~ +85 |
| Storage Temperature(°C) |
-40 ~ +85 |
| Mass(g) | 5 |

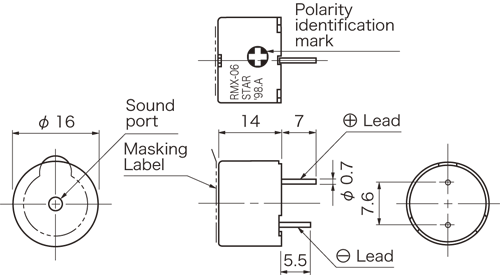

Dimensions
- RMX-06
