SAE-20A
High-sound pressure level, Reflowable
Features
- Upper sound port
- Reflowable
- Flat frequency response with higher SPL
- Excellent durability in severe environment (Operating temperature: -40°C to +85°C)

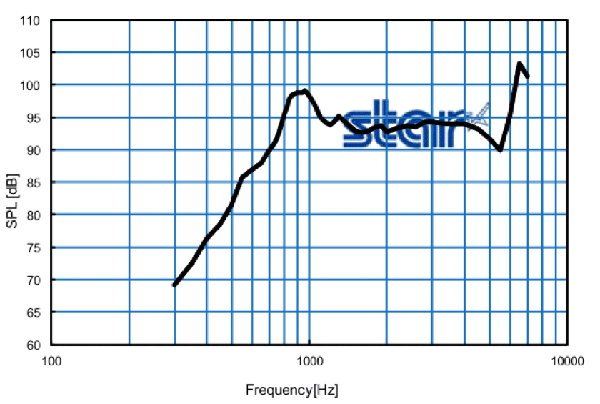

Frequency Response
| Conditions |
Measurement in the standard test fixture Measurement distance: 10cm Applied power: Rated input |
|---|---|
| Notes | The frequency curve shows a typical characteristic and it is not the guaranteed sound pressure level(SPL). |
Specifications
| Model Name | SAE-20A |
|---|---|
| SPL(dB/10cm) | 93 ± 3 |
| Rated Input(W) | 0.5(2.00Vrms) |
| Impedance(Ω) | 8 ± 1.6 |
| Resonance Frequency(Hz) |
850 ± 100 |
|---|---|
| Operating Temperature(°C) |
-40 ~ +85 |
| Storage Temperature(°C) |
-40 ~ +105 |
| Mass(g) | 3.0 |

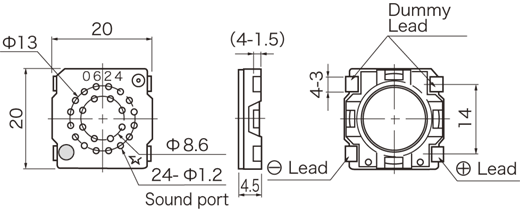

Dimensions
