SCG-16A

High-sound pressure level and thin type

  • Automobile
  • ETC
  • Drive Recorder
  • Portable Audio
  • Digital Camera
  • Electronic Dictionary
  • Handy Scanner
  • Sphygmomanometer
  • Security System
  • Reflowable
  • High Heat Resistance
  • High S P L
  • Compact
  • Thin Size
  • RoHS Compliant

Features

  • High-sound pressure level
  • Thin type
  • Suitable size for small products such as mobile phone, PDA, and etc.
  • With external lead wire.

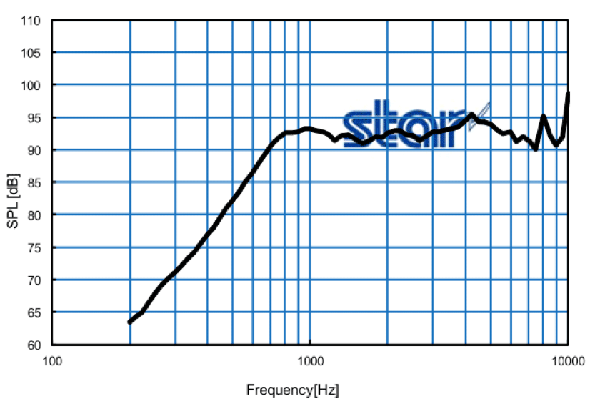

Frequency Response

Conditions Measurement in the standard test fixture
Measurement distance: 10cm
Applied power: Rated input
Notes The frequency curve shows a typical characteristic and it is not the guaranteed sound pressure level(SPL).

Specifications

Model Name SCG-16A
SPL(dB/10cm) 92.5 ± 3
Rated Input(W) 0.3(1.55Vrms)
Impedance(Ω) 8 ± 1.2
Resonance
Frequency(Hz)
780 ± 100
Operating
Temperature(°C)
-30 ~ +70
Storage
Temperature(°C)
-40 ~ +85
Mass(g) 1.2

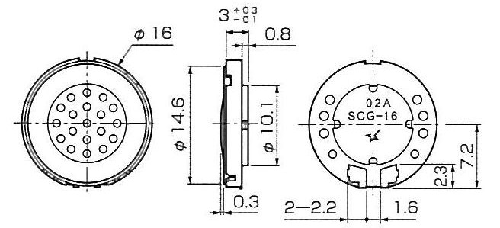

Dimensions
