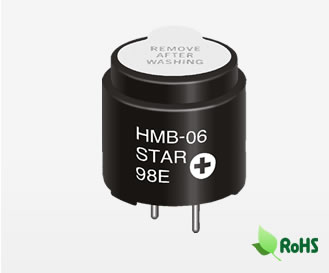

HMB Series
Dip-solderable and washable
Features
- Dip-solderable and washable
- Compact design, Rich sound volume
- Low current consumption
Applications
- Microwave Oven
- Printer
- Pager
- Automobile Electronics
- Computer Peripherals
- Electronic Oven
- Telephone
- POS System
- Electronic Typewriter
- Portable Battery-operated Equipment
- Electronic Cash Register
- Timer
- Keyboard
- Copier
Characteristic

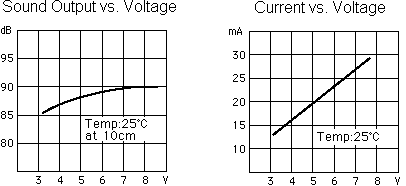

HMB-06

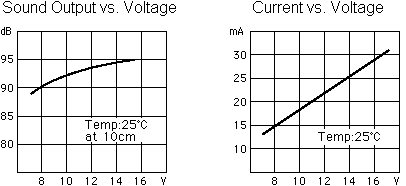

HMB-12
Specifications
| Model Name | HMB-06/HMB-12 |
|---|---|
| SPL(dB/10cm) | Min. 85 |
| Rated Voltage(V) | 6.0 / 12.0 |
| Operating Voltage(V) | Max. 7.0/16.0 |
| Consumption Current (mA) | Max. 30 |
| Basic Frequency(Hz) | 2,200 ± 300 |
|---|---|
| Operating Temperature(°C) |
-40 ~ +85 |
| Storage Temperature(°C) |
-40 ~ +85 |
| Mass(g) | 5 |

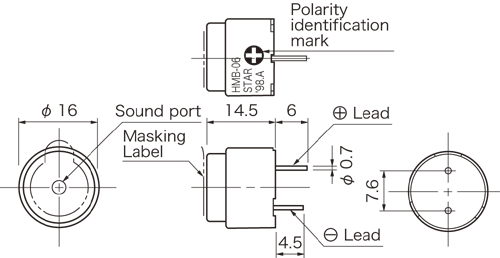

Dimensions
