2. Functions

2.1. Outline (System Configuration)

An outline of PassPRNT operation is shown below.

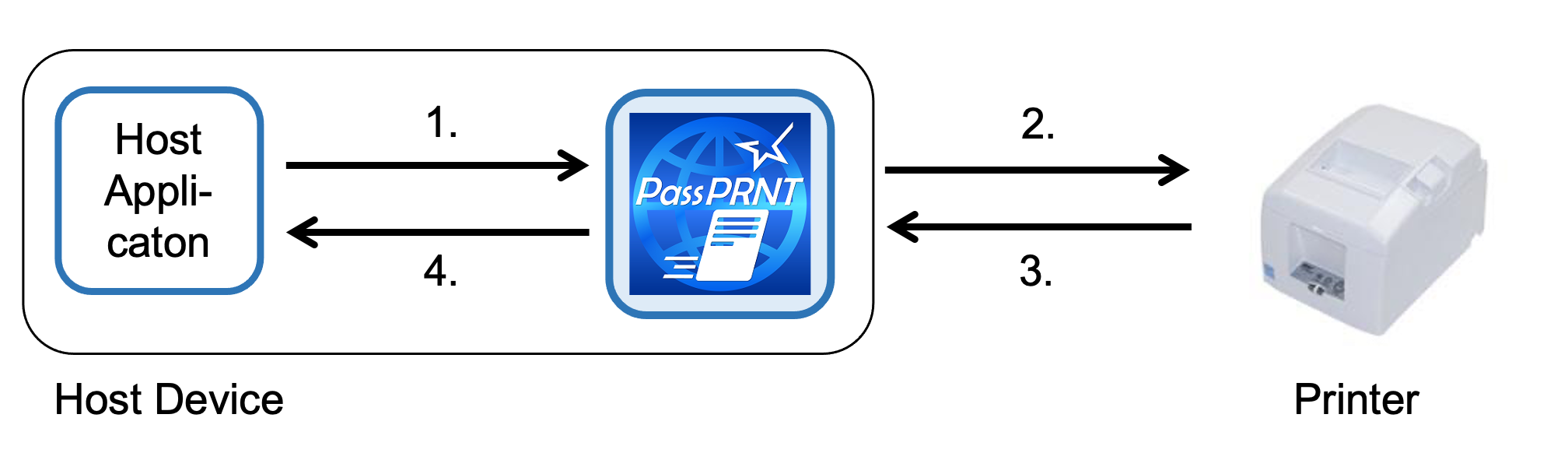

_images/system.en.png

“Host application”, “PassPRNT”, and “Printer” exist as players in the processing. The host application and PassPRNT are installed in the host device. Data communication between the host device and printer is done using Bluetooth/LAN etc.

The key processes that occur at the time of printing are described below from the viewpoint of the data flowing between the players.Data specifications are described later in this manual.

  1. In the host application, printing data for PassPRNT is generated, and a URL scheme is used to send the data to PassPRNT. (* At this time the OS automatically switches screens from the host application to PassPRNT.)

  2. PassPRNT displays/generates the printing data in accordance with the received URL scheme data. After the data is generated, the printing data is sent to the printer.

  3. After the printing data is sent, PassPRNT monitors the printer’s status to determine whether the printing was successful or not. (* The paper loading status and any opened covers are also monitored, and when an error occurs, the retry/cancel screen is displayed so that the printing process can be attempted again.)

  4. When switching back to the host application from PassPRNT, printing success judgment result data is generated and sent to the host application at the time of the switch.

2.2. Hardware Configuration

The Hardware Configuration consists of the printing device (“Printer”) and the device on which PassPRNT is installed (“Host device”). These devices connect and communicate using various communication interfaces.

Model

Firmware Version

Communication Interface

settings value

TSP650II

2.1 or later

Bluetooth / LAN

“”

TSP700II

5.1 or later

Bluetooth / LAN

“”

TSP800II

2.1 or later

Bluetooth / LAN

“”

FVP10

2.0 or later

Bluetooth / LAN

“”

BSC10
*Limited region model

1.0 or later

LAN

“escpos;”

TSP100IIIBI

1.0 or later

Bluetooth

“”

TSP100IIIW

1.4 or later

LAN

“”

TSP100IIILAN

1.3 or later

LAN

“”

TSP100IIIU

1.0 or later

USB

“”

TSP100IV

1.0 or later

Bluetooth / LAN

“”

TSP100IV SK

2.0 or later

Bluetooth / LAN

“”

mPOP

1.0.1 or later

Bluetooth / USB

“portable;”

mC-Print2

1.0 or later

Bluetooth / LAN / USB

“portable;”

mC-Print3

1.0 or later

Bluetooth / LAN / USB

“portable;”

mC-Label3

1.0 or later

Bluetooth / LAN

“portable;”

BSC10II 2
*Limited region model

3.0 or later

LAN

“portable;”

SM-S210i (StarPRNT)
*Japan model only

3.0 or later

Bluetooth

“portable;”

SM-S210i (ESC/POS)
*Japan model only

2.5 or later

Bluetooth

“portable;escpos”

SM-S230i (StarPRNT)
*EU/US model only

1.0 or later

Bluetooth

“portable;”

SM-S230i (ESC/POS)
*EU/US model only

1.0 or later

Bluetooth

“portable;escpos”

SM-T300i (StarPRNT)

3.0 or later

Bluetooth

“portable;”

SM-T300i (ESC/POS)

2.5 or later

Bluetooth

“portable;escpos”

SM-T400i (StarPRNT)

3.0 or later

Bluetooth

“portable;”

SM-T400i (ESC/POS)

2.5 or later

Bluetooth

“portable;escpos”

SM-L200

1.1 or later

Bluetooth Low Energy

“portable;”

SM-L300

1.0 or later

Bluetooth Low Energy

“portable;”

2

This is only available in “Standard Mode”. Please check the “Operation Mode” of the self-printing (turn on the power while pressing the Feed button).

To change emulation for a portable printer from ESC/POS to StarPRNT, refer to the procedure below. You can check the current emulation setting in the connection status of the settings screen.

Emulation Changing (from ESC/POS to StarPRNT) for Portable Printers

  1. Turn on the printer power and open the printer cover.

  2. Press and hold both the power button and the FEED button, and once the ERROR lamp flashes 5 times quickly release the power and FEED buttons. The emulation change will be automatically performed.

  3. After setting the paper, closing the printer cover will start printing using the set emulation mode.

    For ESC/POS mode: EMU = ESC/POS

    For StarPRNT mode: EMU = StarPRNT

If the emulation mode does not change correctly, perform steps 1 through 3 of the procedure again.When doing so, for step 2, do not release the buttons during the flashing, and take care to only release the buttons after flashing has completed 5 times.

  1. After switching from ESC/POS to StarPRNT, turn the power to the printer off and then turn it on again. The selected emulation will become active after the power to the printer is turned on again.

2.3. Software Configuration

  • Supported OS Infomation

    Star PassPRNT Version

    Supported OS Version

    V2.8.0~

    iOS 13.0 or later

    V2.6.0~

    iOS 12.0 or later

    V2.4.2~

    iOS 11.0 or later

    V2.4.0~

    iOS 9.0 or later

2.4. PassPRNT Screens

The various parts that make up PassPRNT are described here according to the screen they are displayed on.

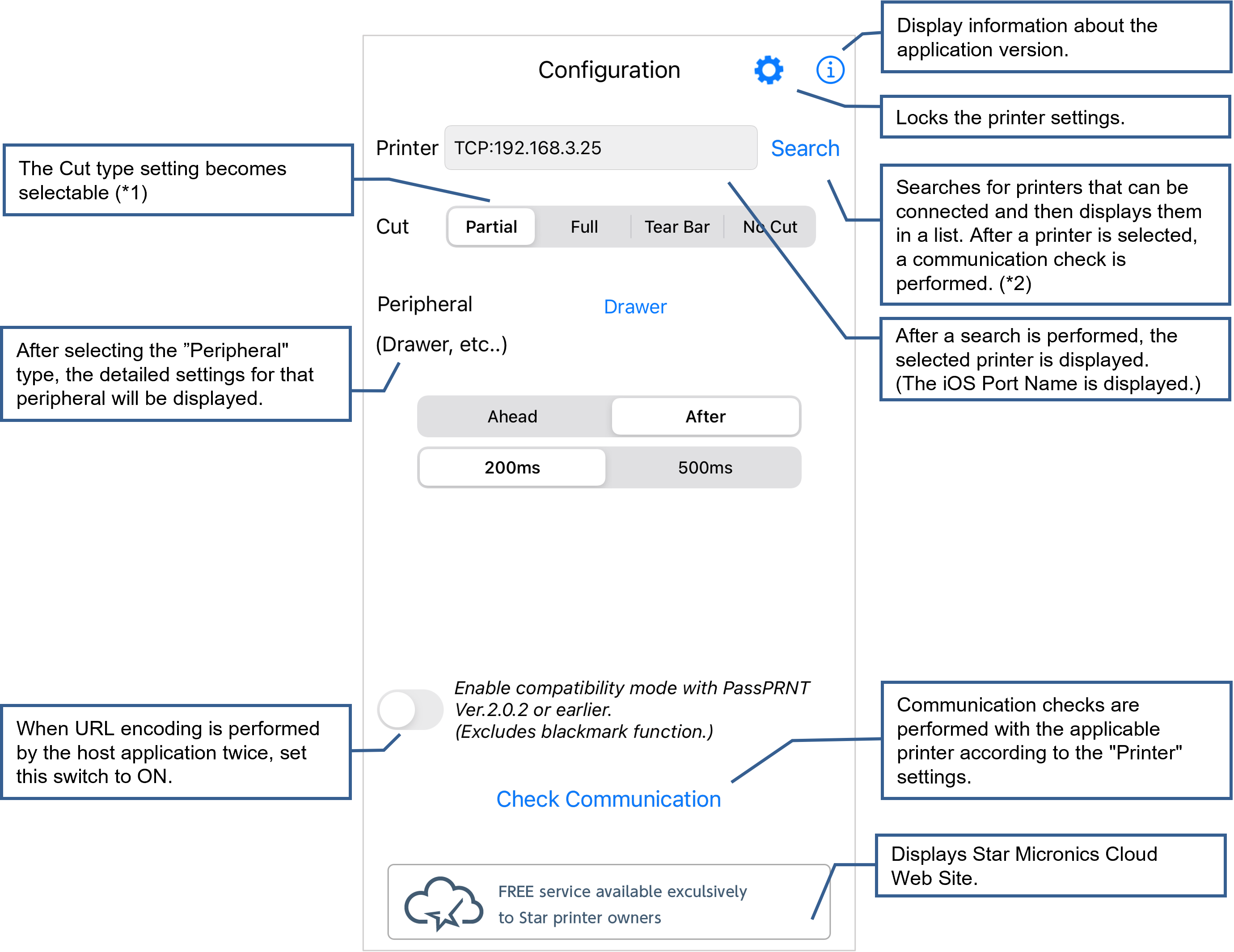

  • “Configuration” Screen

    The printer to be used is selected and set by the user on this screen. The description of each part of this screen is provided below.

    _images/printer_config.en.png
    *1 CAUTION about cut
    • For TSP650II, TSP100III series, TSP100IV, TSP100IV SK, and mC-Print3, BSC10II, the Cut type is set to partial cut even when “Full” is selected.

    • For BSC10, the Cut type is set to partial cut even when “Full” or “Tear bar” is selected.

    • For a mobile printer, paper is fed to the tear bar position even when “Partial” or “Full” is selected.

    *2 CAUTION about search
    • When an iOS device and an mPOP are connected via USB, the mPOP is detected as a Bluetooth connection (e.g., "BT:mPOP"). You can use the USB connection by selecting the mPOP detected as it is.

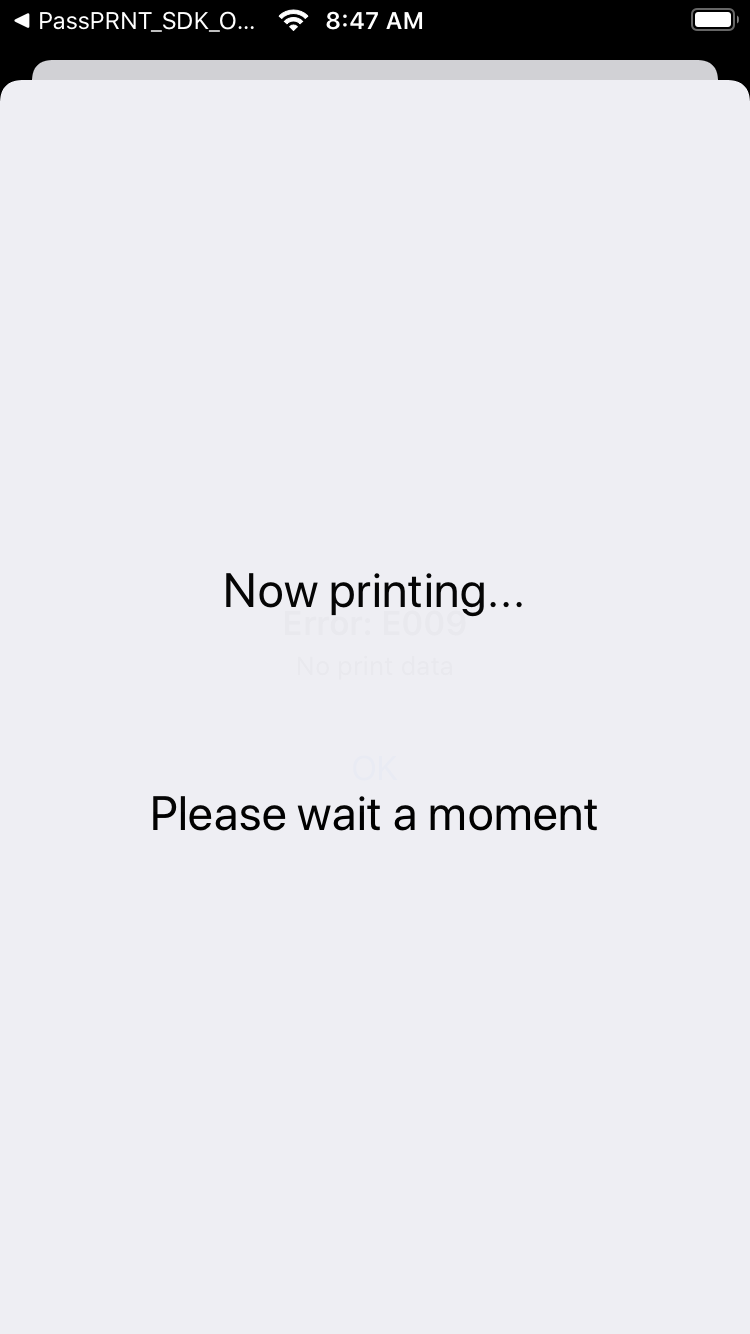

  • “Now printing” screen

    This is the screen that is displayed when switching from the host application to print. Error messages may be displayed according to the status during printing.

    _images/printing.en.png
